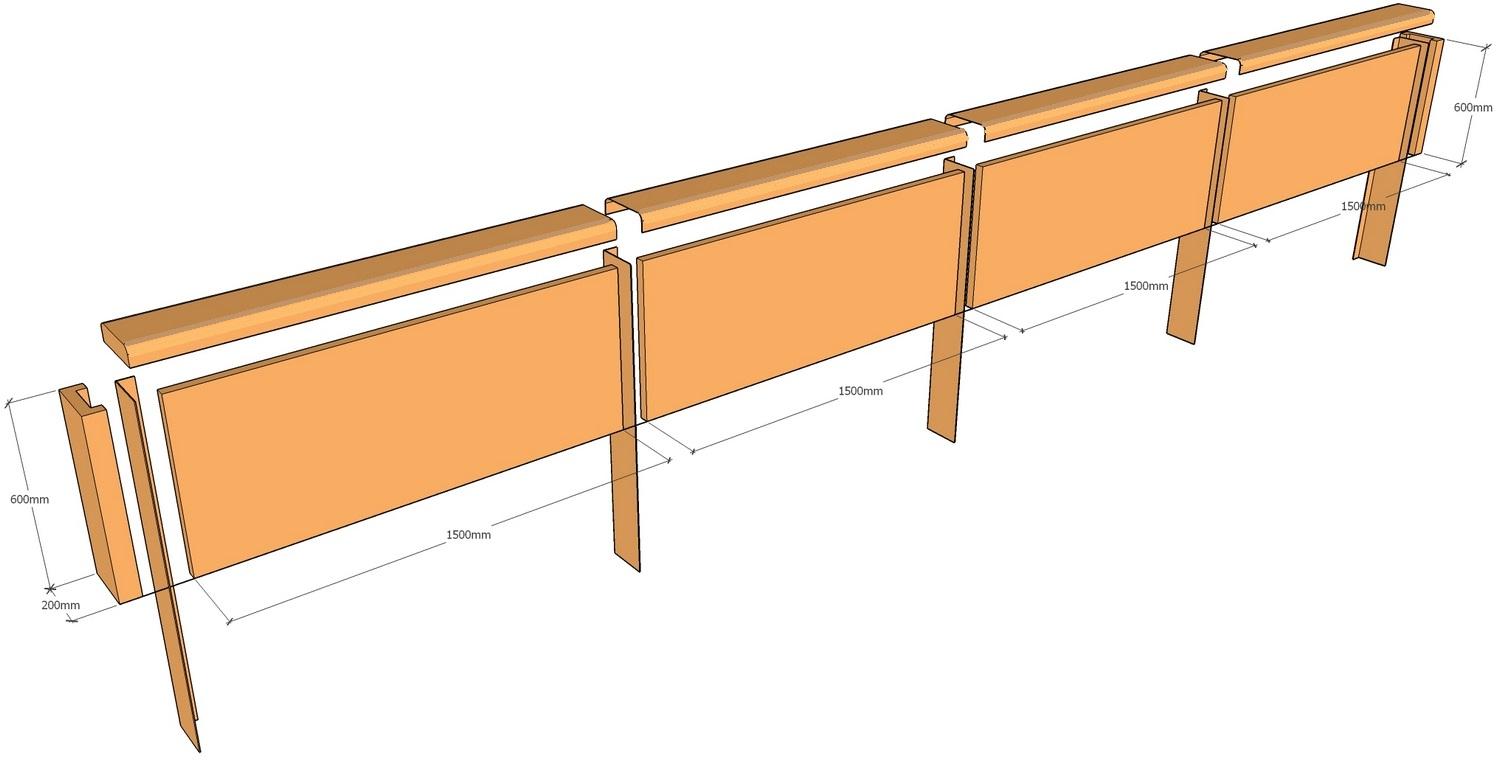

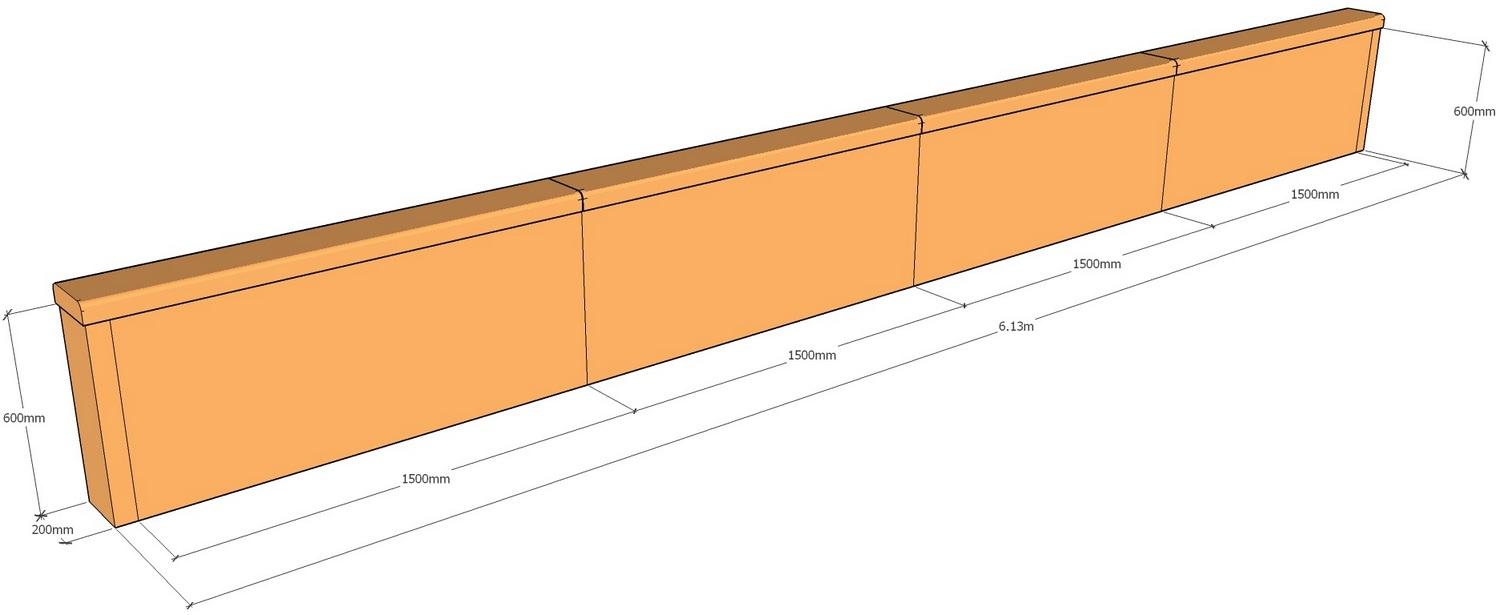

Corten corten retaining wall 6.13m long x 600mm tall with top capping
When land behind retaining wall is flat
Minimum pile depth = wall height,
–
In softer soils or when the retaining surcharges
1/ increase pile hole depth and diameter
2/ increase number of support posts
The actual retaining wall support post detail, will depend on the site geology, height of wall, site profile, and surcharges
Please email us with any questions on retaining wall stability.
Need a layout drawing for a different sized retaining wall?
Email us the size and we will get back to you with a suggested layout

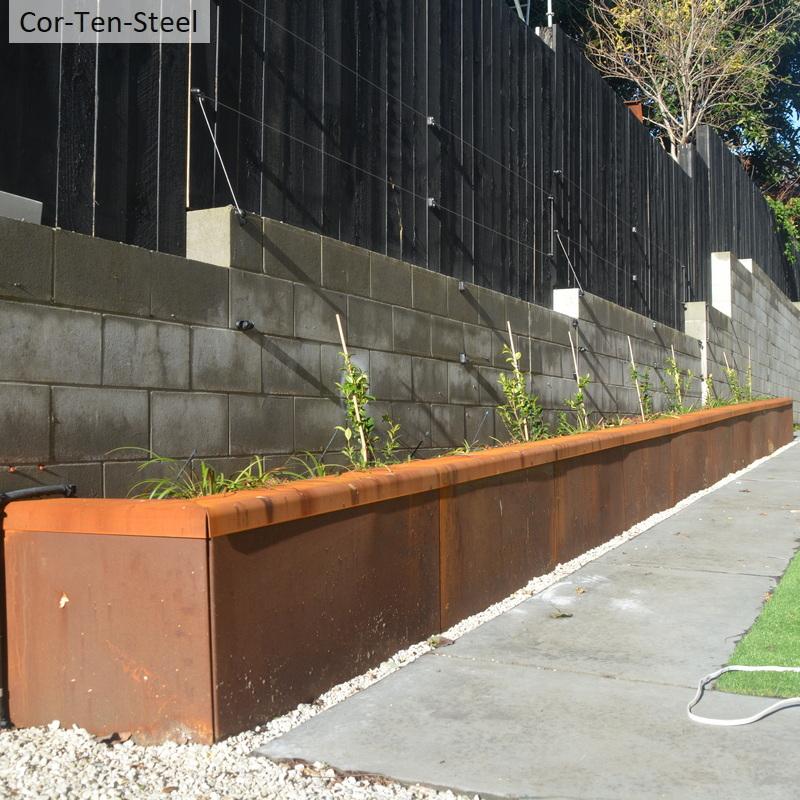

Corten retaining wall 6.13m long x 600mm tall, with top capping
Full kitset price
Filters
Sort results
Reset
Apply
Complete kitset |
$1,582.85
|
Corten retaining wall 6.13m long x 600mm tall, with top capping
Parts list
Filters
Sort results
Reset
Apply
TITLE | DESCRIPTION | PRICE | QTY | |
|---|---|---|---|---|
3mm thick |
$244.46
|
|||
2mm thick |
$96.29
|
|||
160 x 53 x 3mm |
$90.55
|
|||
2mm thick |
$78.18
|
|||
160 x 53 x 3mm |
$72.92
|
|||
$18.88
|
Panel size and price list
External Corner Sizing and Prices
Angle Post Prices
Vertical end cap price list
Stainless Steel TEK screw pricesNeed a layout drawing for a different sized retaining wall?
Email us the size and we will get back to you with a suggested layout
It is recommended to seal the internal steel that will be in contact with the soil, with a bitumen damp proof membrane such as Sika Blackseal Plus or equivalent. This will increase the lifespan of the planter.
