Corten 450mm Retaining Wall Post Selection
Longer posts set in concrete pile holes create stronger retaining walls

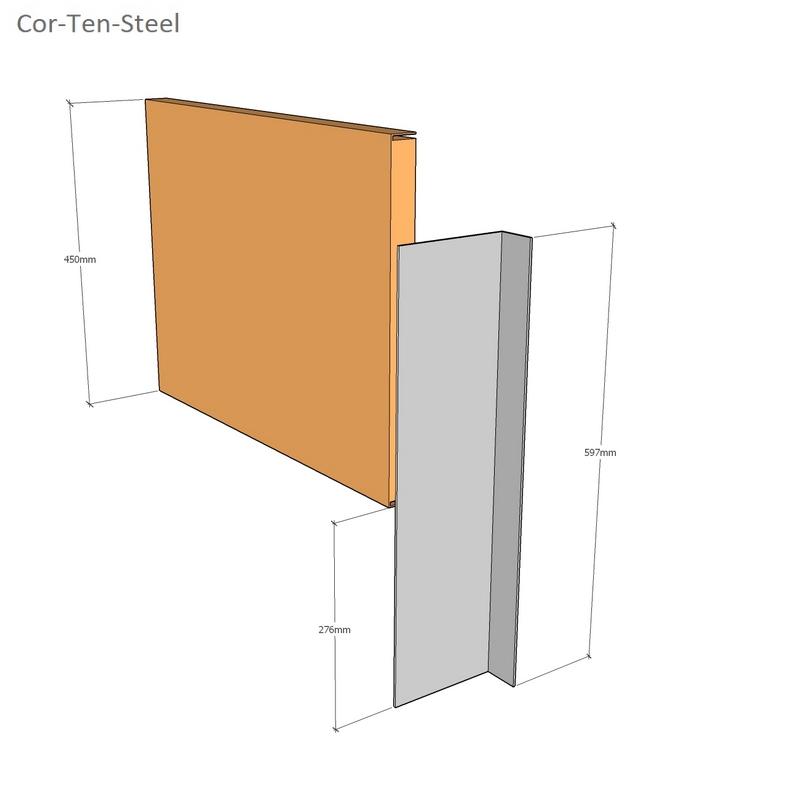

597mm post
Application
Max soil height 300mm
Post set in concrete in firm subsoil

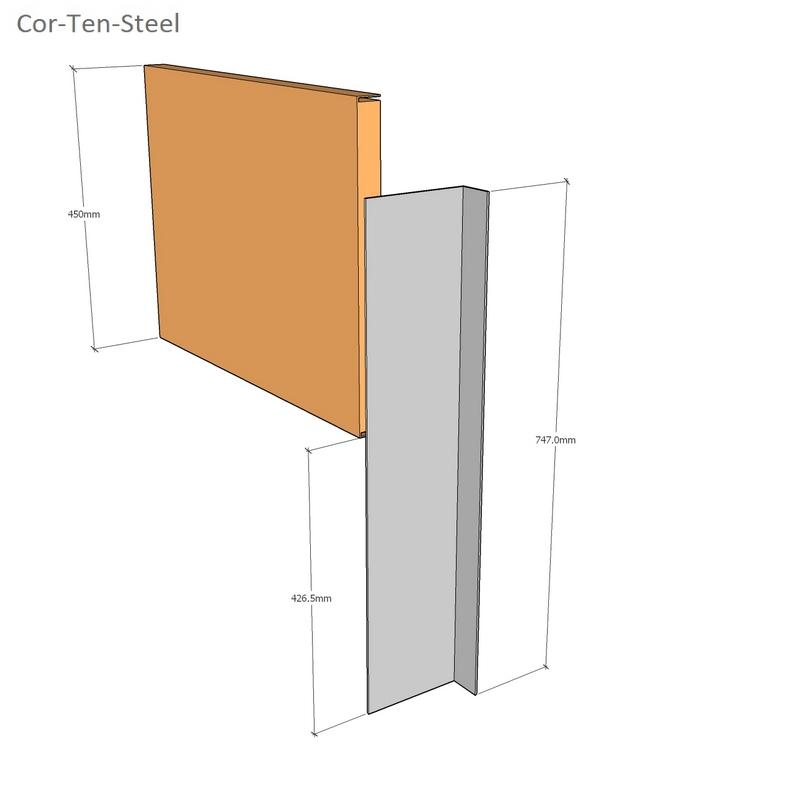

747mm post
Application
Max soil height 450mm
Post set in concrete in firm subsoil

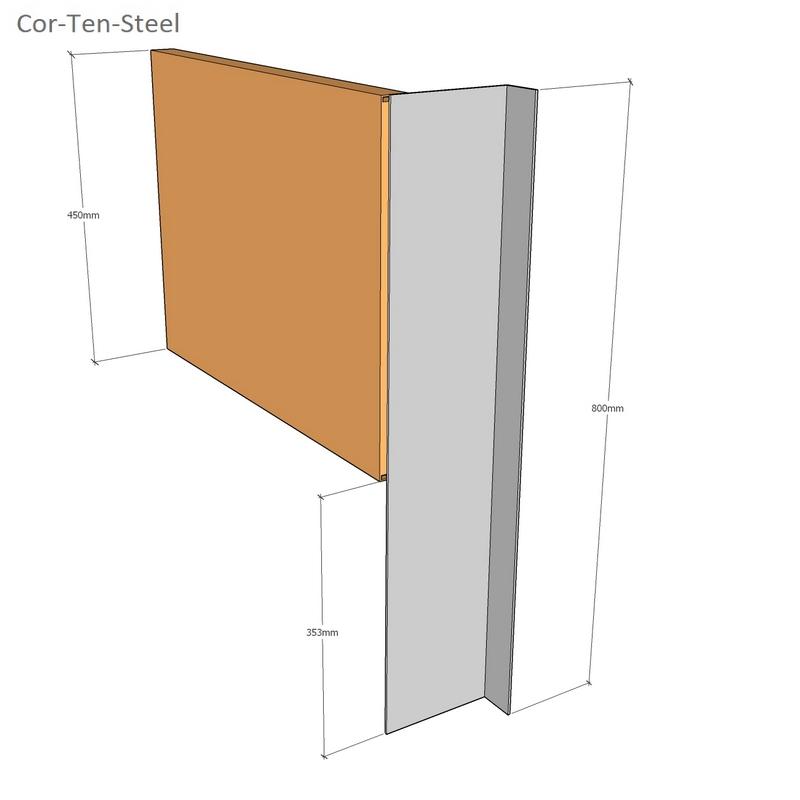

800mm post
Application
Max soil height 450mm
Post set in concrete in firm subsoil
Accepts capping bracket and capping

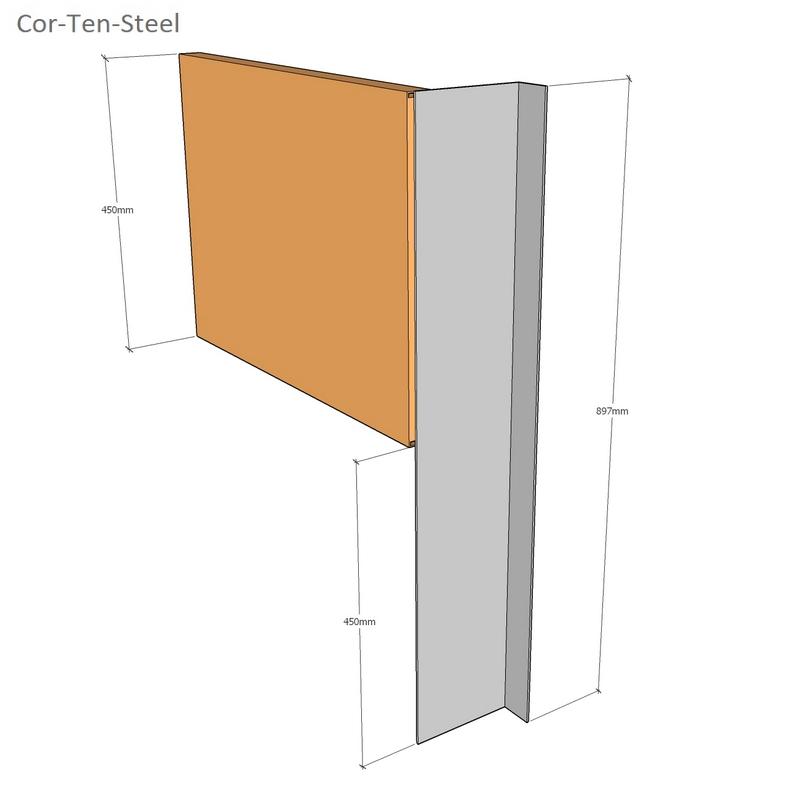

897mm post
Application
Max soil height 450mm
Post set in concrete in average subsoils
Accepts capping bracket and capping

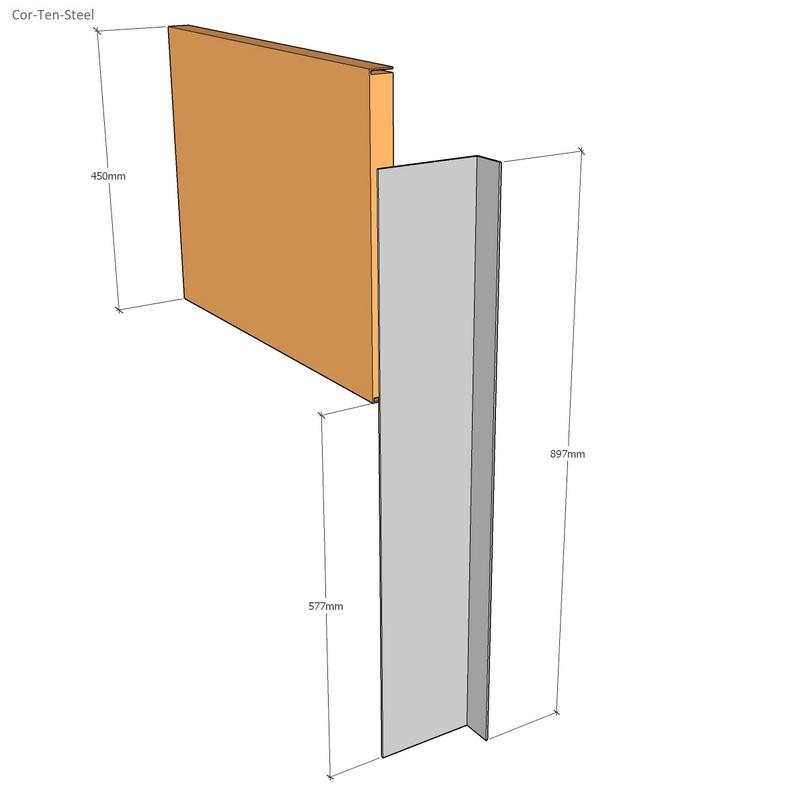

897mm post
Application
Max soil height 450mm
Post set in concrete in average subsoils
Post pile hole extended for extra overturning resistance

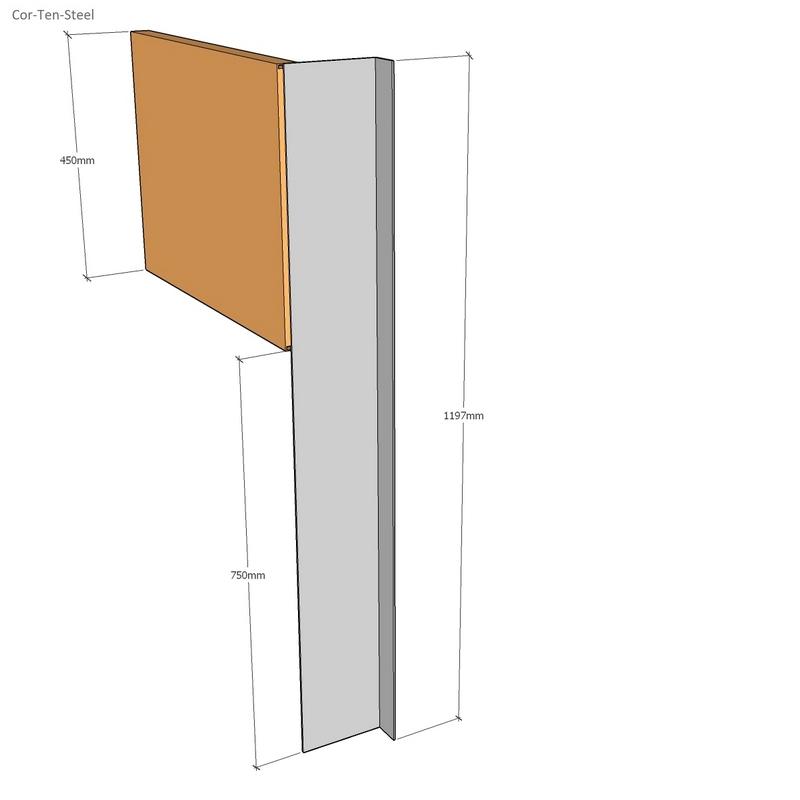

1197mm post
Application
Soil height 450mm with additional load surcharges
Post set in concrete in average subsoils
Post pile hole extended for extra overturning resistance
Accepts capping brackets and capping
Corten Steel Post Prices
TITLE | DESCRIPTION | PRICE | QTY | |
|---|---|---|---|---|
$5.32
|
||||
$9.12
|
||||
$10.54
|
||||
$18.88
|
||||
$34.27
|
||||
$64.87
|
||||
160 x 53 x 3mm |
$37.42
|
|||
160 x 53 x 3mm |
$46.43
|
|||
160 x 53 x 3mm |
$49.36
|
|||
160 x 53 x 3mm |
$55.26
|
|||
160 x 53 x 3mm |
$72.92
|
|||
3mm thick |
$7.09
|
|||
433 x 35mm equal angle |
$10.03
|
|||
3mm thick |
$21.30
|
Weak and poor bearing capacity subsoils will not provide the required resistance for the posts and piles to be effective
Retaining wall design factors in both the site geology and loads being placed behind the wall.
All retaining walls require a proper drainage system, to prevent hydrostatic pressure related retaining wall failures.
Corten retaining wall capping

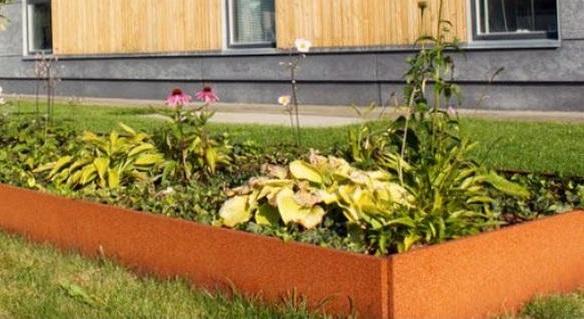

Modern garden using corten steel retaining walls
Modern garden using corten steel retaining walls
