Corten curved corner How to

Available in both internal and external formats

corten curved corner example

Corner sections come in 450mm & 600mm radii

Quarter circle and eighth of a circles ( 90deg & 45deg )

6 heights available
300mm,
375mm
450mm
600mm
750mm
900mm

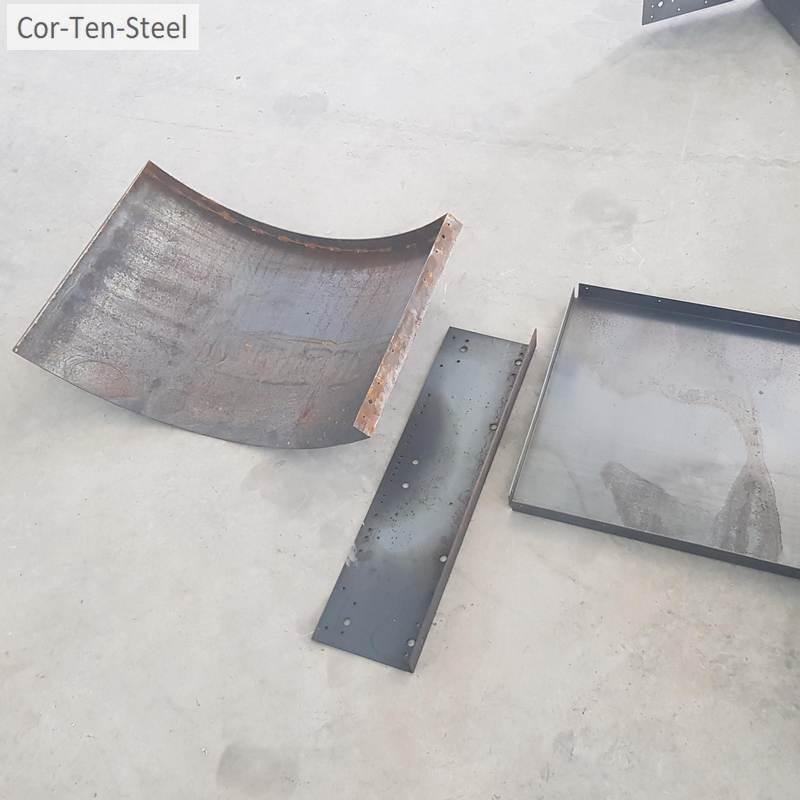

corten parts to make rounded corner

Corten parts used

90 deg External corner 450mm radius x 450mm tall
600mm x 450mm corten panel
1200mm x 450,mm corten panel
597mm Angle post
Stainless Steel TEK screws

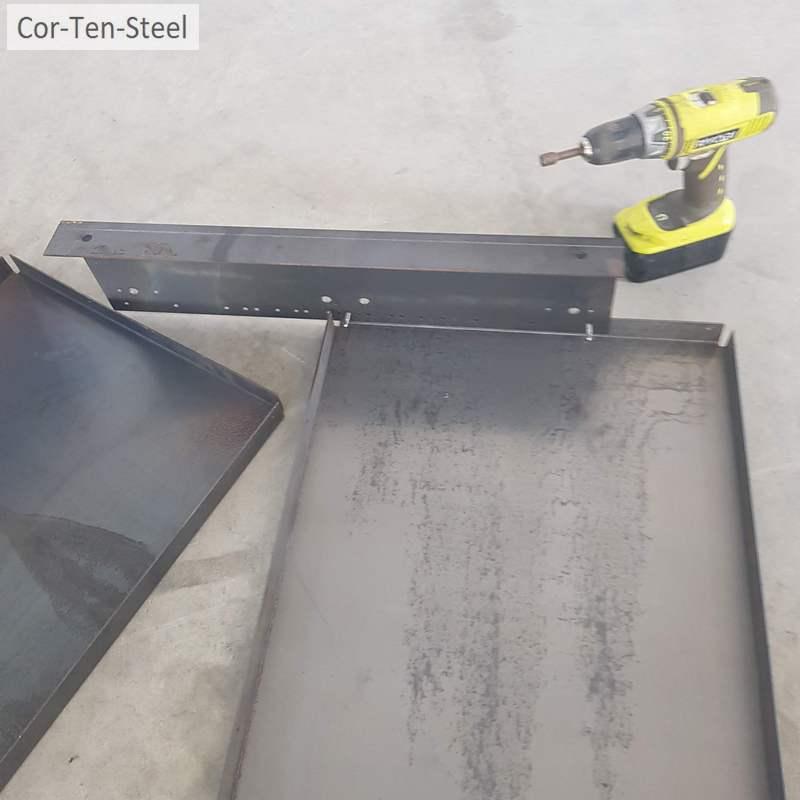

Fix Post to panels with TEK screws

Post finished 150mm below top of wall
300mm of post into foundation

Posts at panel joins

For lower walls you may be able to use fewer posts

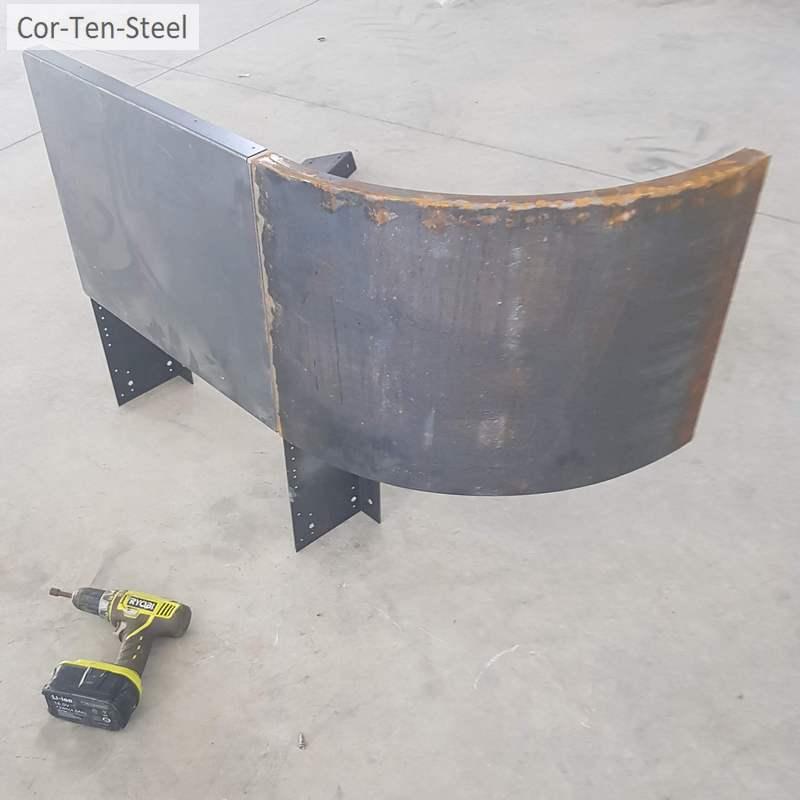

corten quarter circle corner detail

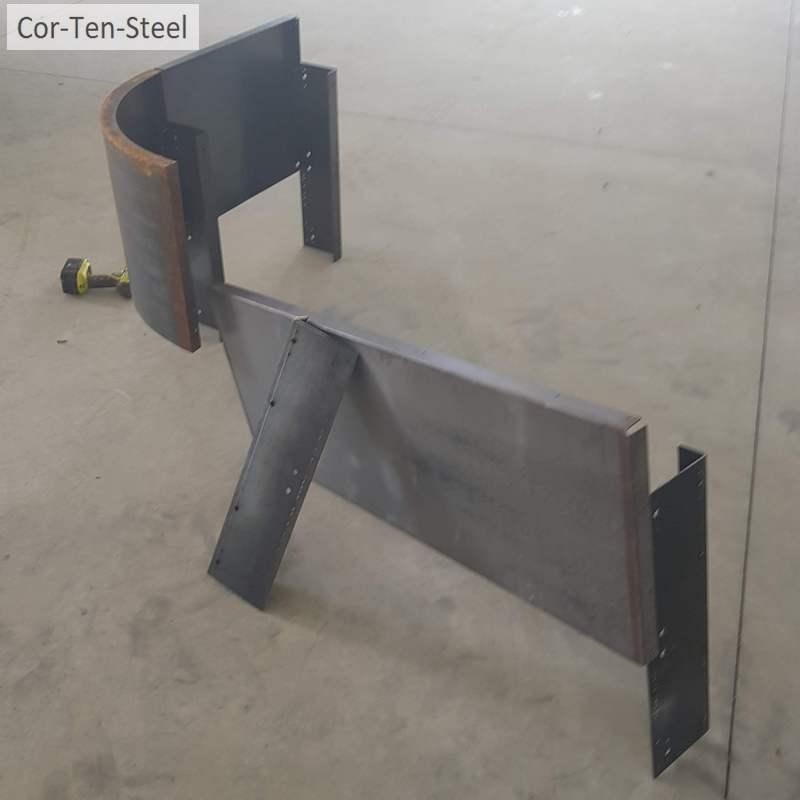

2 Posts & 2 Panels done

TEK screws use a standard 5/16th Nut driver, available from Mitre10

Support posts unseen from front

1200mm x 450mm panel ready to add

450mm tall panels come in the following lengths
300mm
375mm
450mm
600mm
750mm
900mm
1200mm
1500mm
1800mm
2100mm
2400mm
2700mm
3000mm

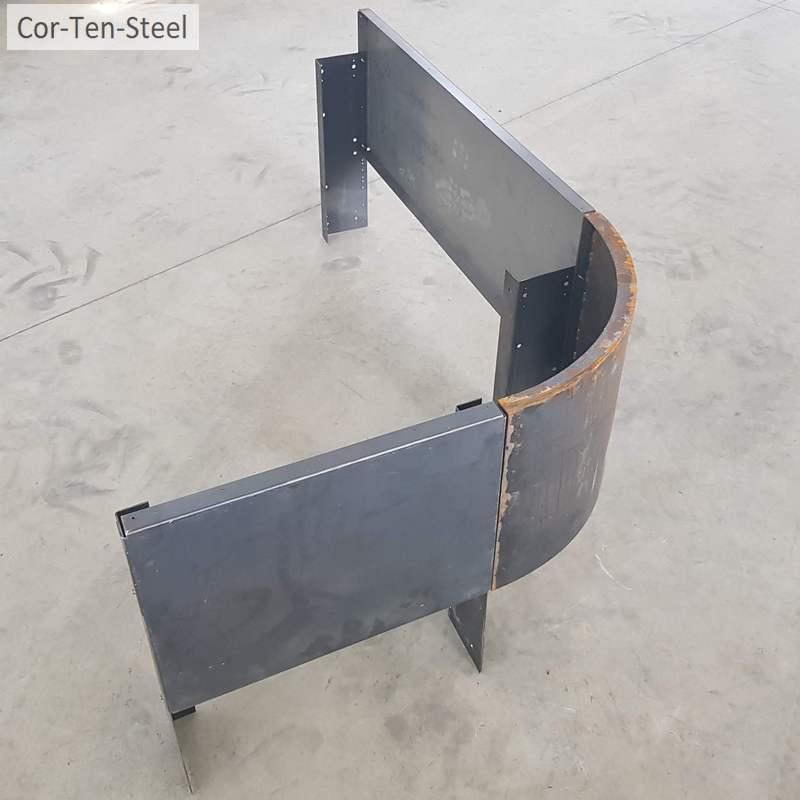

corten curved corner example

Finished corner detail

Posts should be set in concrete pile holes

Corten supplied unweathered

It is recommended to seal inside/unseen steel with a bitumen damp proof membrane such as Sika Blackseal Plus or equivalent

terraced corten steel retaining wall

Corten fence in cubed pattern

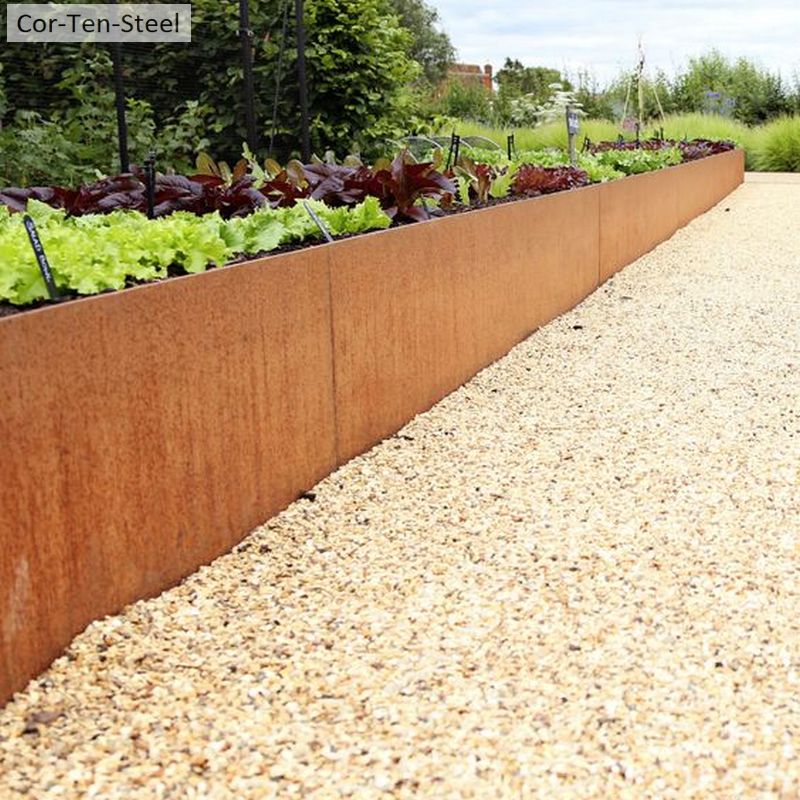

low corten garden retaining walls

Corten steel fence and pergola

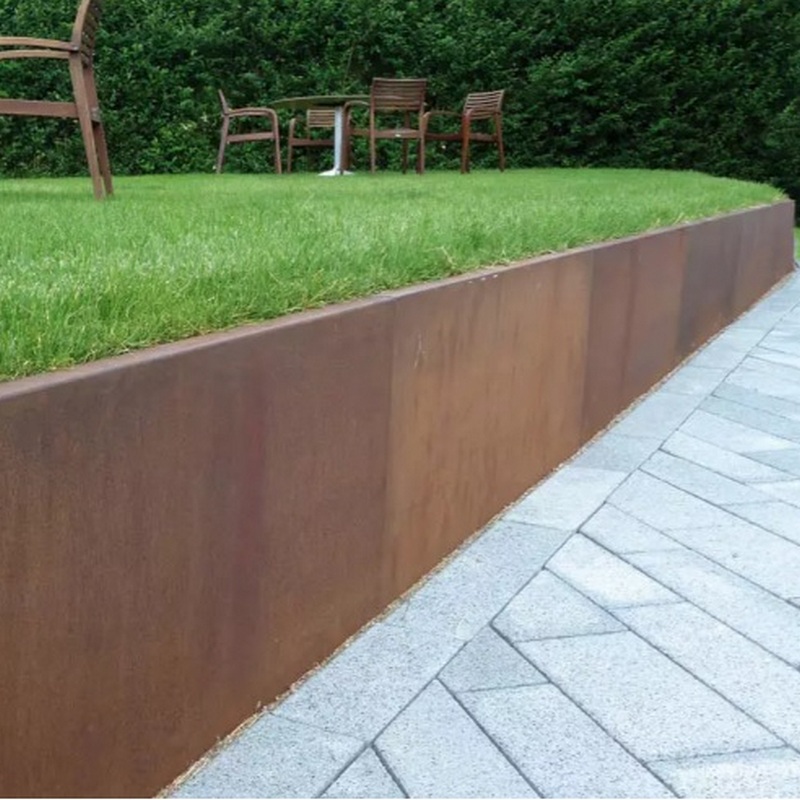

corten garden wall 450mm tall
