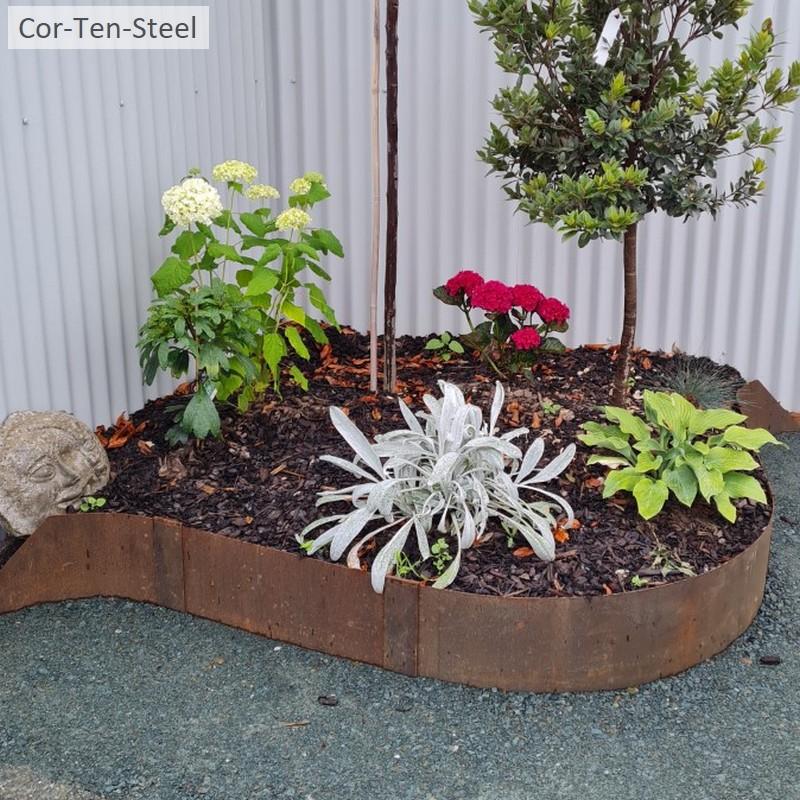

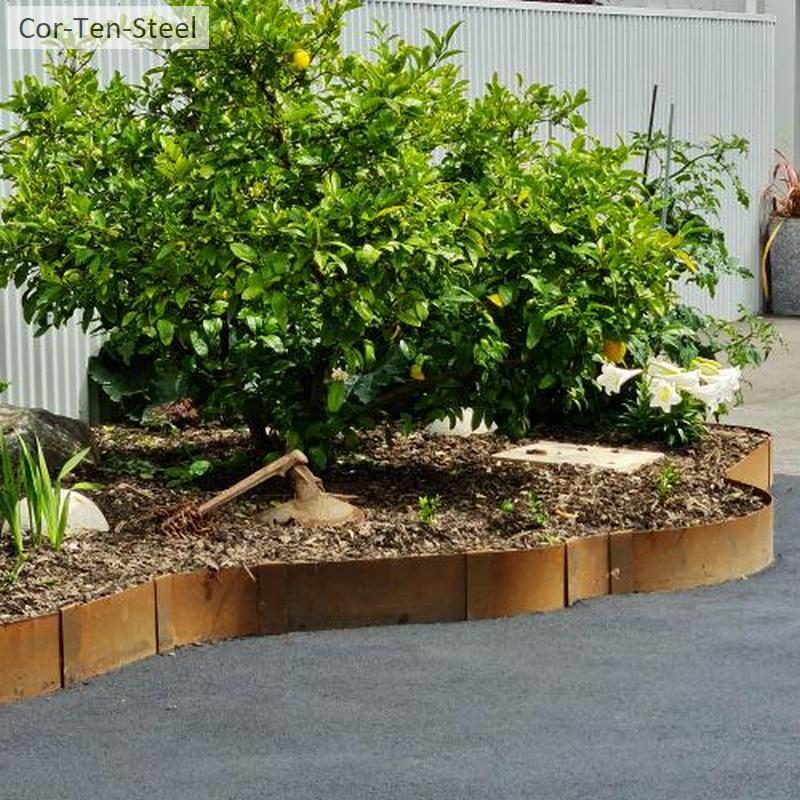

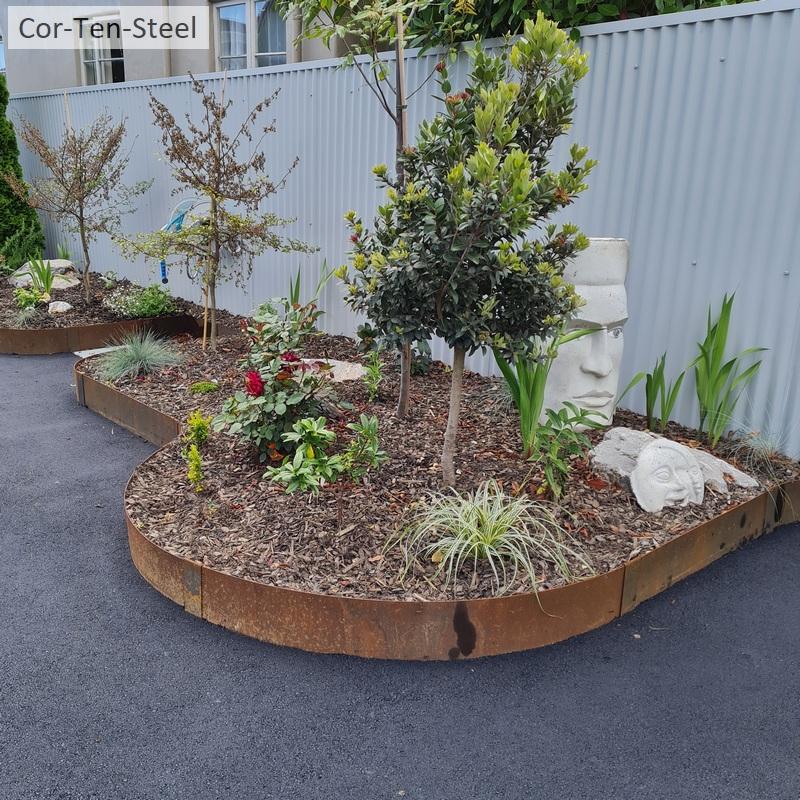

Corten Curved Garden Edging

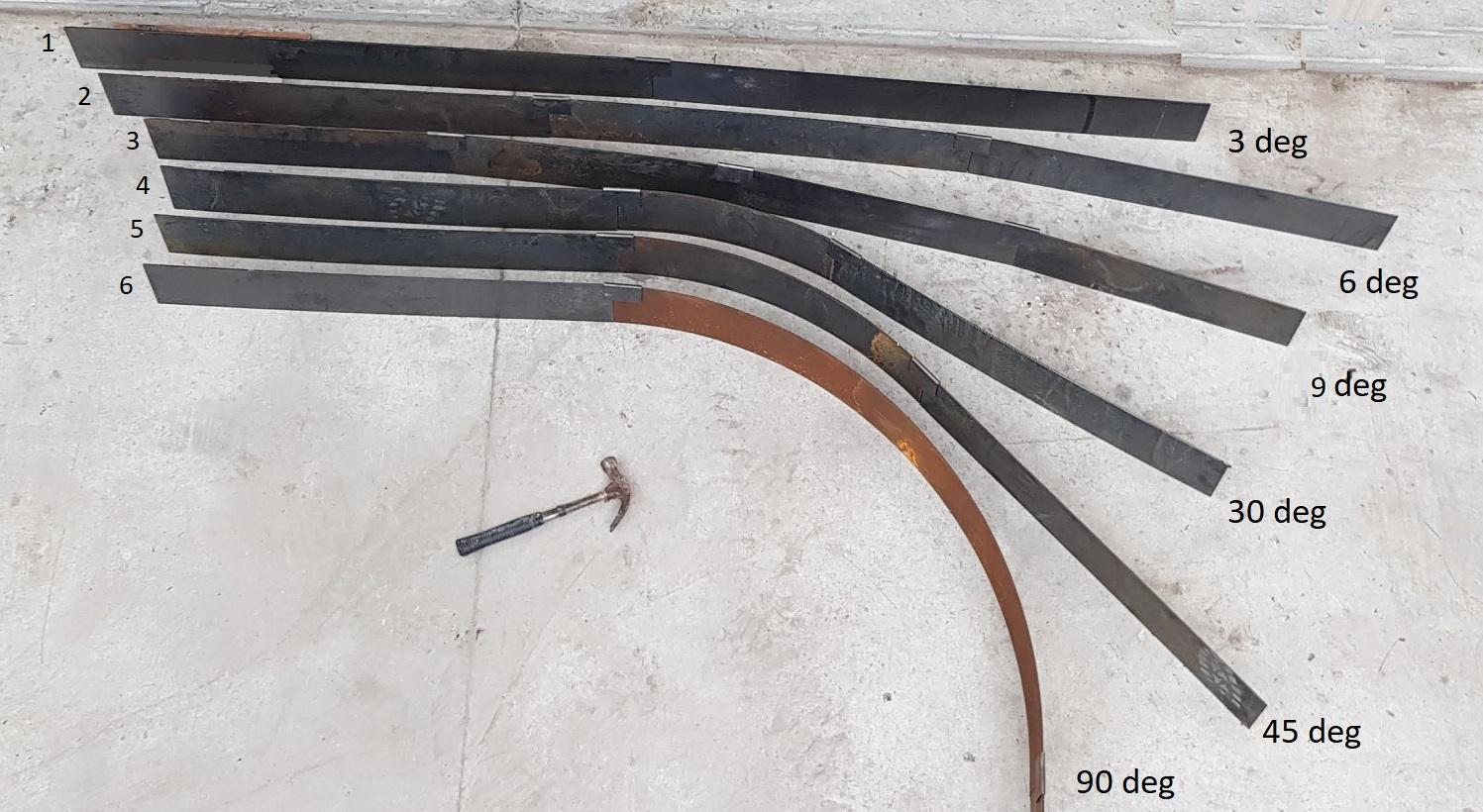

curved edging options
1/ 2 off 1200mm straights + peg = 3 degrees of curve


2/ 3 off 900mm straight + 2 pegs = 6 degrees of curve


3/ 4 off 600mm straights + 3 pegs = 9 degrees of curve


4/ 1 off 900mm straight + twelfth of circle + 900mm straight = 30 degrees of curve


5/ 1 off 900mm straight + eight of circle + 900mm straight = 45 degrees of curve


6/ 1 off 900mm straight + quarter of circle + 900mm straight = 90 degrees of curve

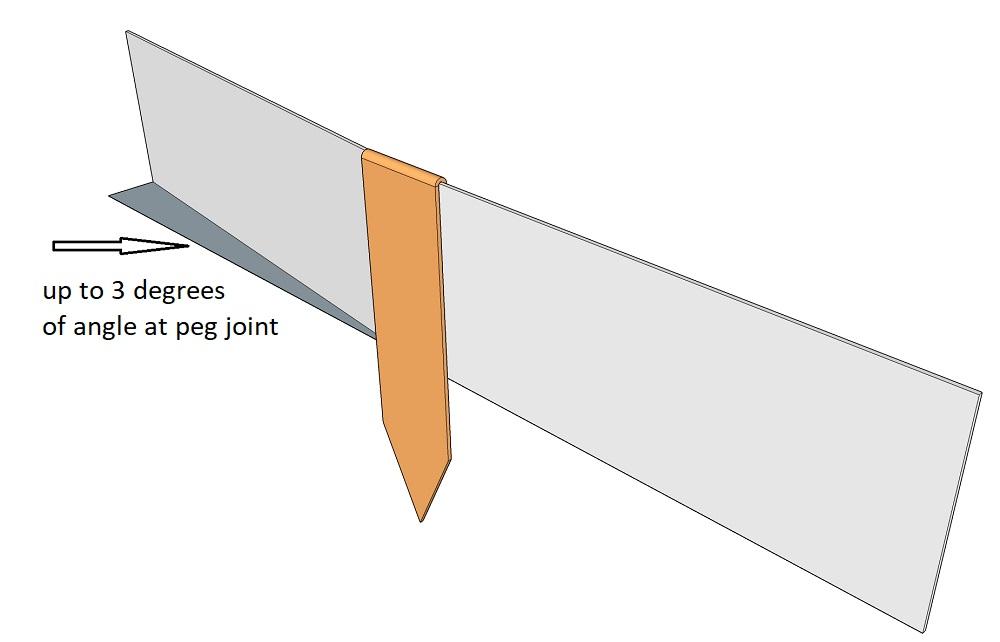

3 degrees of angle at corten peg

edging prices

    Corten steel edging is much stronger and quicker to install than any other garden.

Corten Curve Options

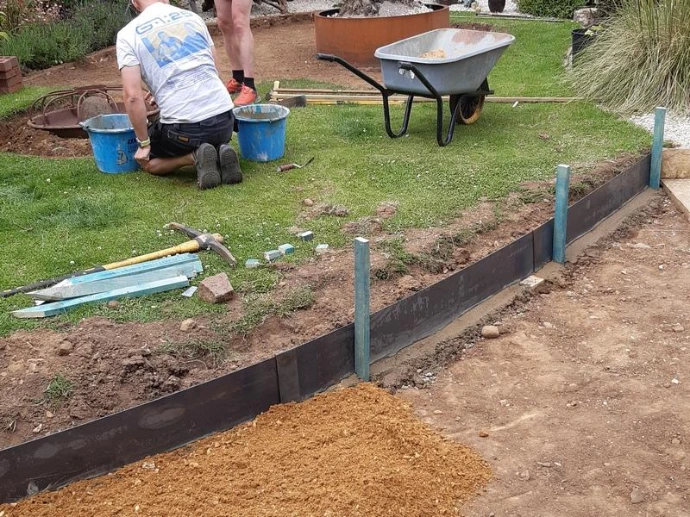

1/ By using several shorter straights you can change direction by up to 3 degrees at each peg joint

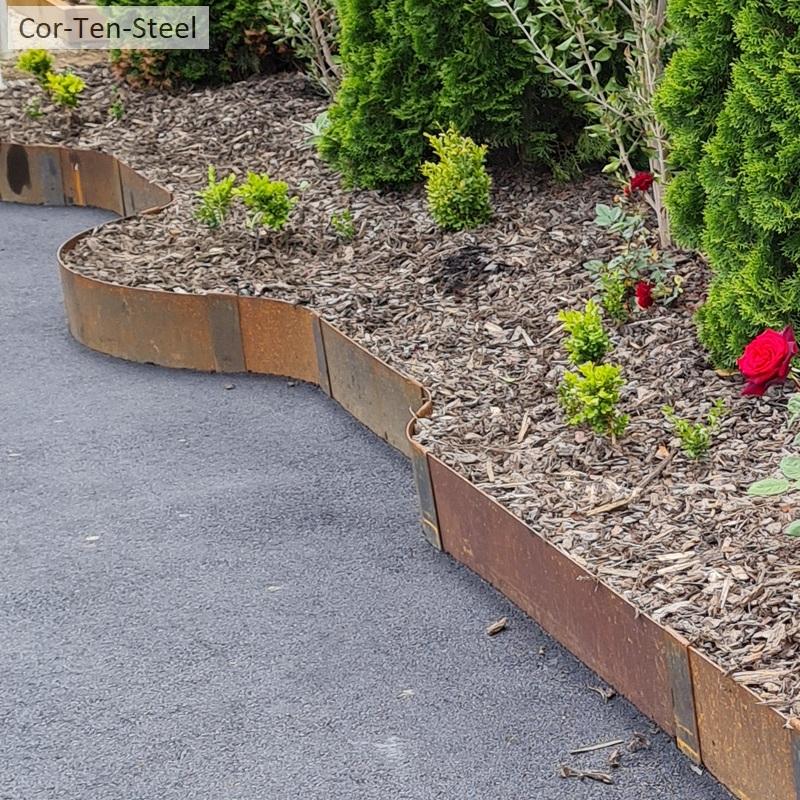

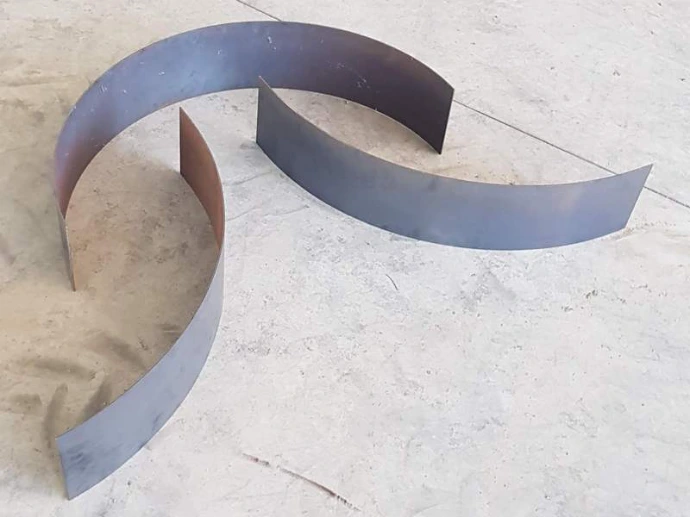

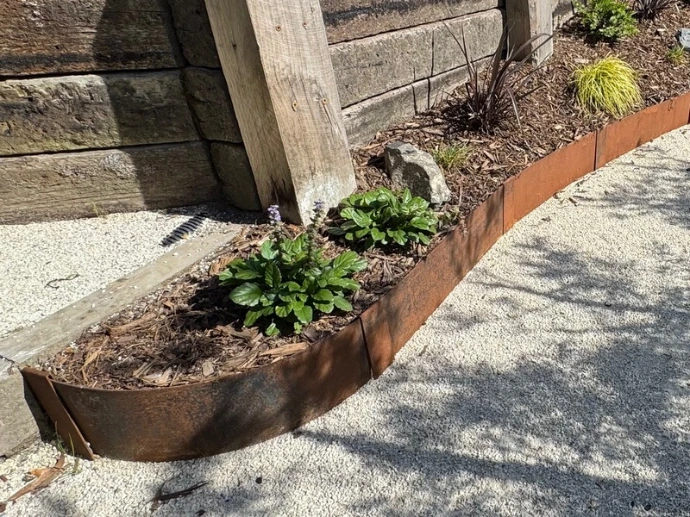

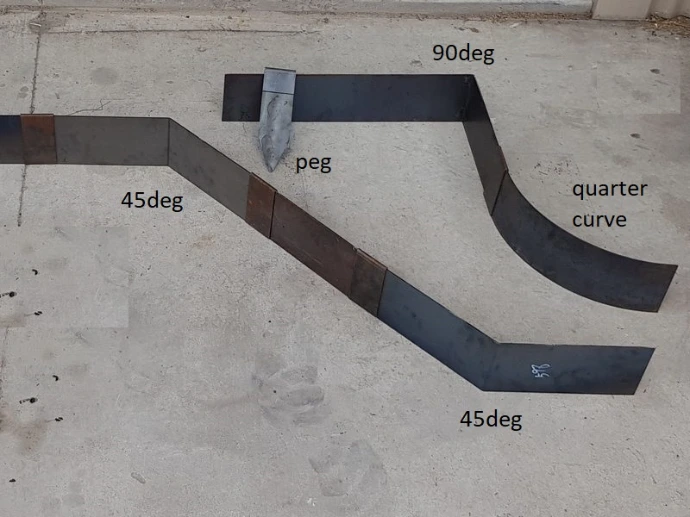

2/ Using preformed quarter, eighth and twelfth edging pieces to create curves

3/ You can use a hammer to put a slight bend in the straight sections. This will add add another 2-5 degrees of curve to each section of edging. Hammering at the centre gives a slight bend, if you hammer at the quarter points you will get a greater curve in the corten plate steel.

4/ How to create smaller radius curves

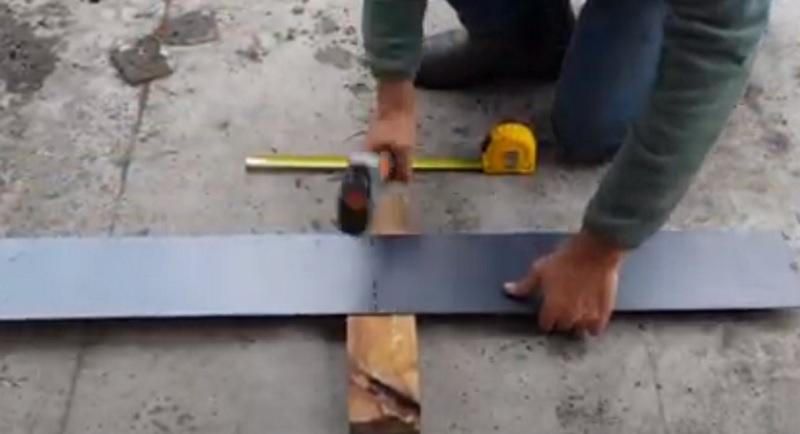

hammer used to bend corten

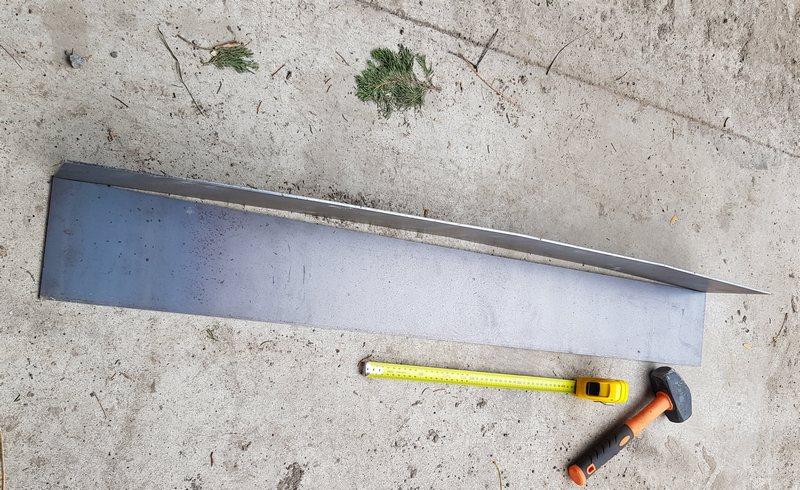

flat corten with slight curve

Cor-ten-steel.co.nz ship curved garden edging NZ wide

All edging and corten accessories shipped in flat packs

Metal garden edging is able to create curves, while being quick and easy to install.

edging prices

    Corten steel edging is much stronger and quicker to install than any other garden.

How to do curves

Corten metal garden edging comes in lengths from 600mm to 2100mm long

Quick and easy to install, just drive the corten stakes in, no need for special tools

corten stair risers

How to do steps

Corten cantilevered post retaining walls, can be built using either corten steel posts or timber retaining wall posts
Corten steel edging comes in 150mm, 200mm, 300mm heights
Peg/clip joiner system allows you to easily reconfigure you garden edging layout, if required, in the future

corten-peg-edge

It is recommended that the buried portions of the metal be coated with a bitumen damp proof membrane such as Sika Blackseal Plus or equivalent
Check the information on life span here here

corten planter with timber capping

It is recommended that the inside portions of the metal be coated with a bitumen damp proof membrane such as Sika Blackseal Plus or equivalent
Check the information on life span here here

8 weeks later the corten is weathering
