Corten Curved Wall How To

4.5m radius using 900mm x 450mm corten panels

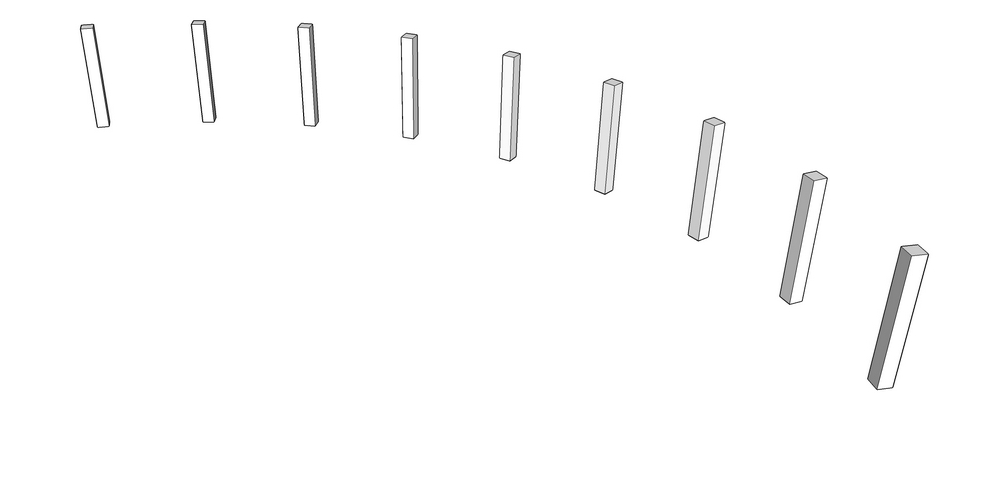

Set out 100 x 100mm H5 posts

corten post set out

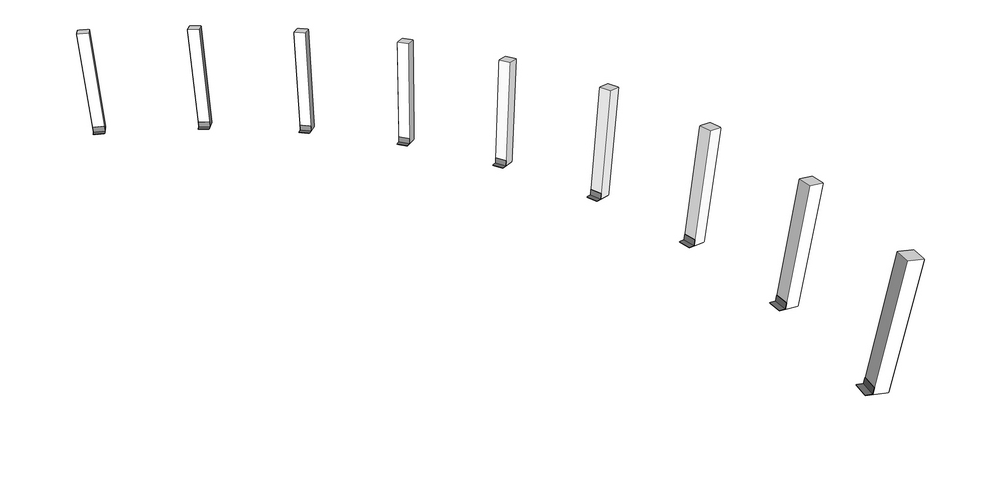

Install bottom row of stainless steel brackets

bottom row of brackets

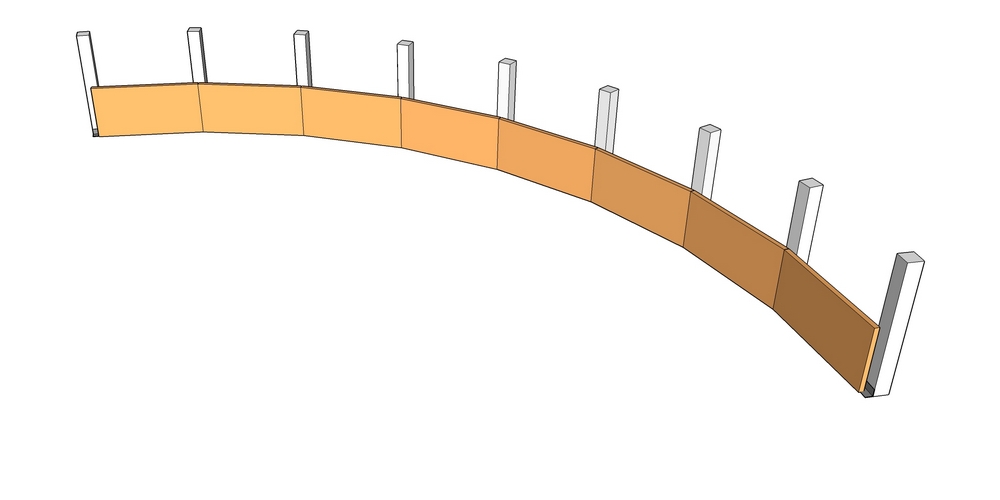

Install bottom row of 900mm x 450mm corten panels

bottom row of corten panels

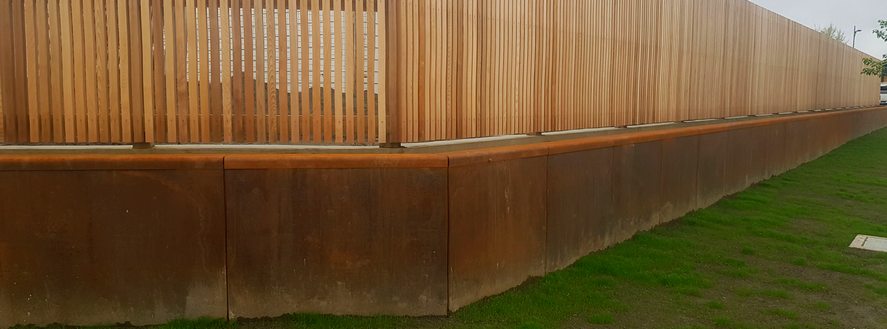

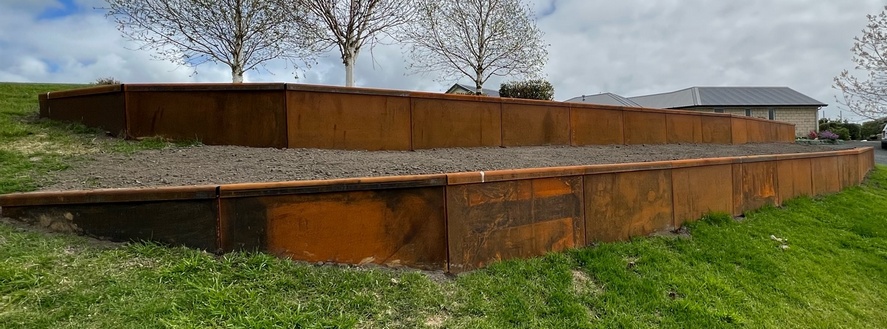

Modern garden using corten steel retaining walls

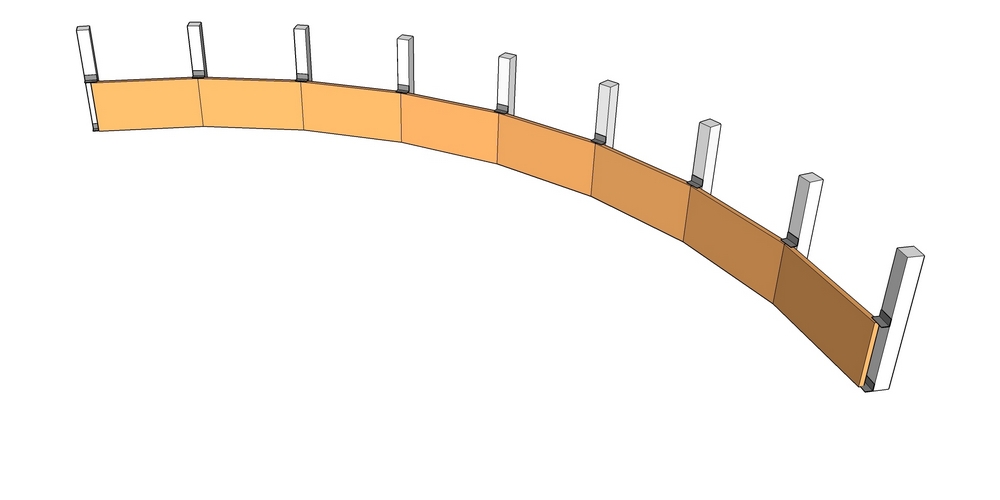

Install middle row of stainless steel brackets

top row of brackets

Modern garden using corten steel retaining walls

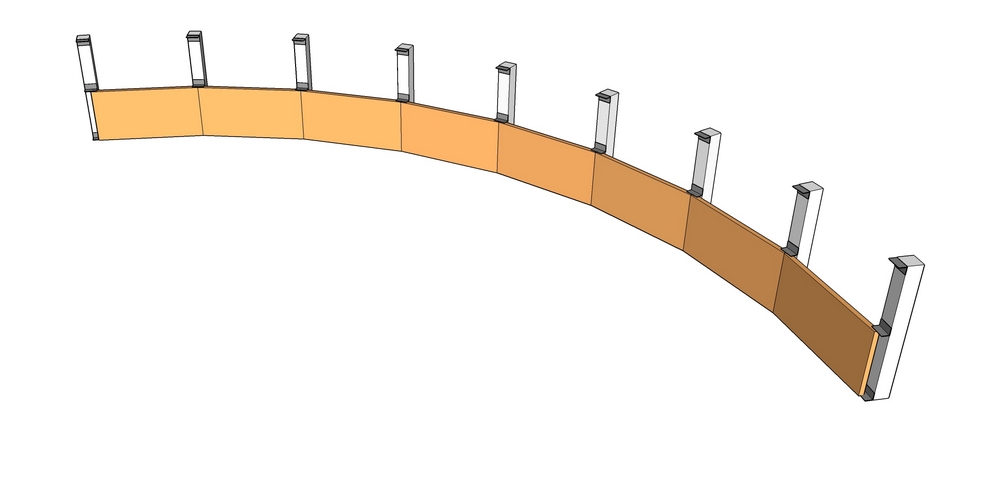

Install top row of stainless steel brackets

Corten panels are pre drilled with pilot holes for lining up with stainless steel brackets

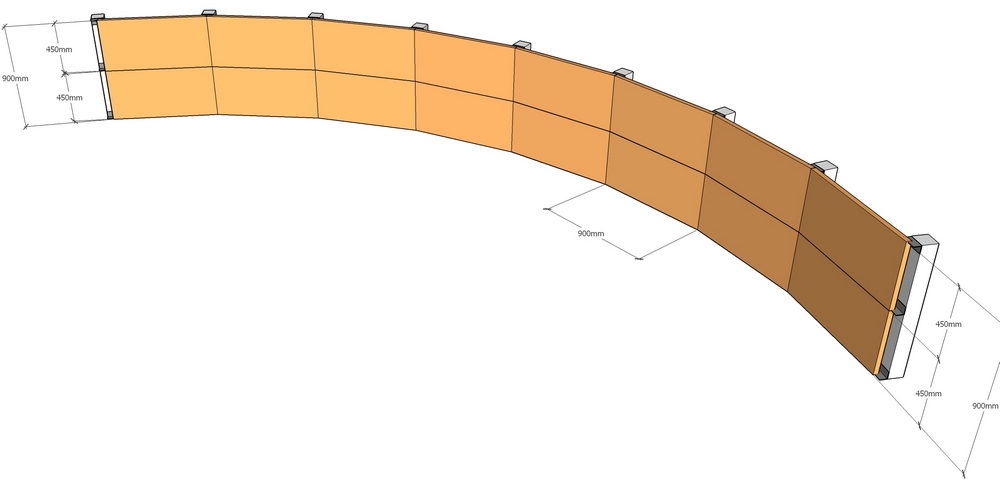

Fit top row of corten with Stainless steel TEK screws

Modern garden using corten steel retaining walls

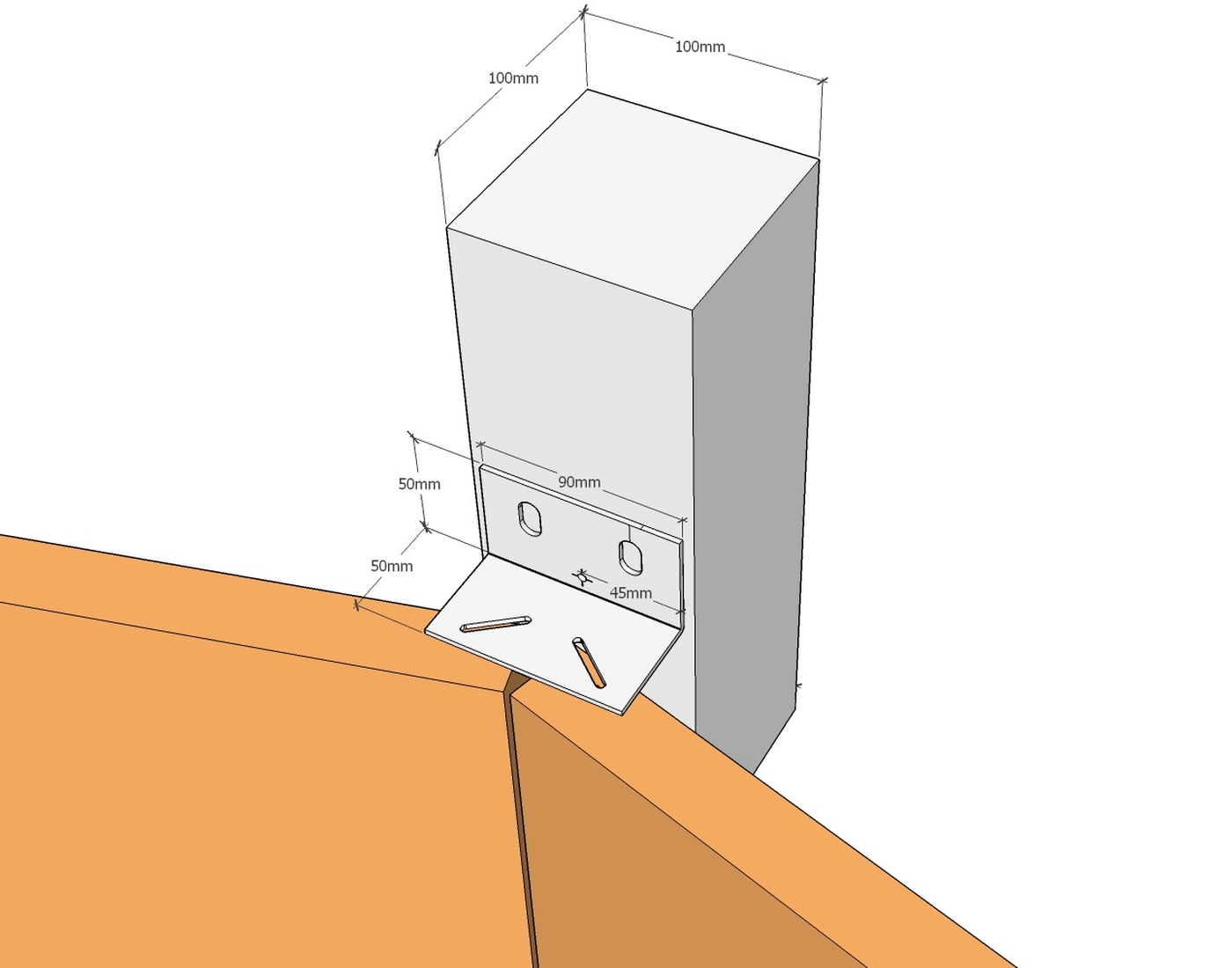

Stainless Bracket can create up to 30 degree convex or concave angle

corten curved wall bracket

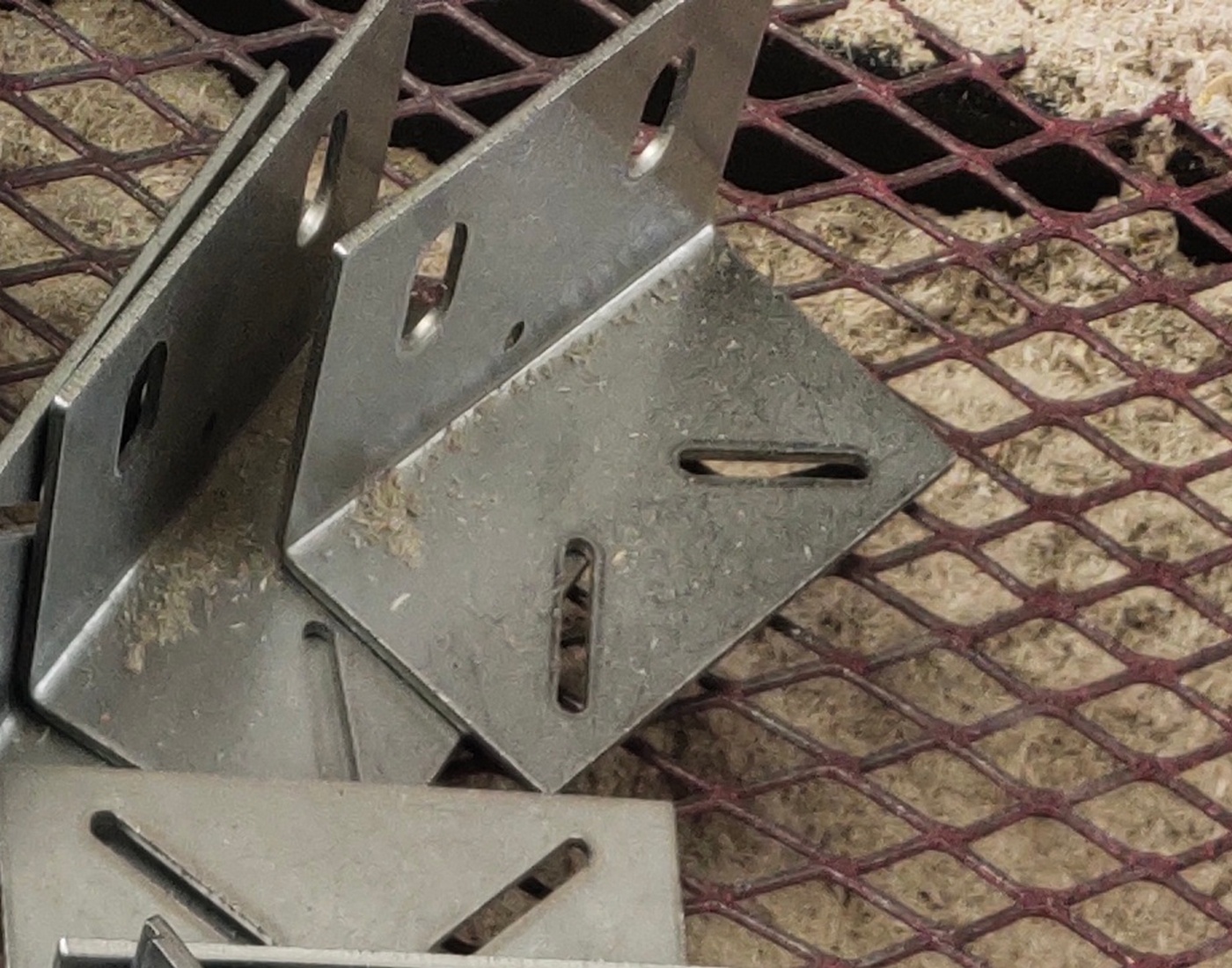

Stainless Bracket can create up to 30 degree convex or concave angle

corten stainless steel bracket

Modern garden using corten steel retaining walls

corten steel garden wall

Modern garden using corten steel retaining walls

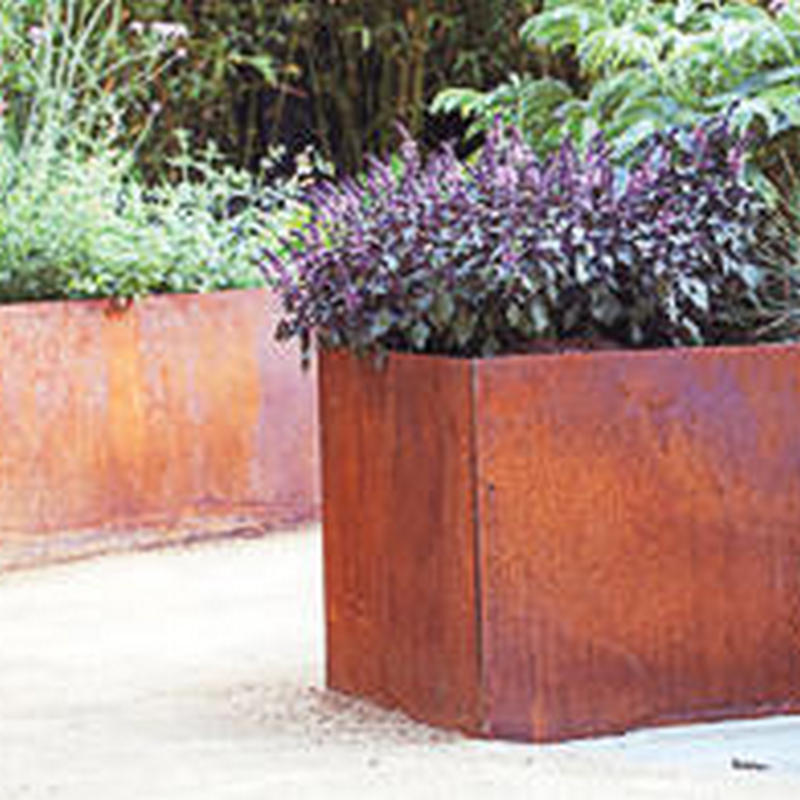

corten garden planter tall

Modern garden using corten steel retaining walls

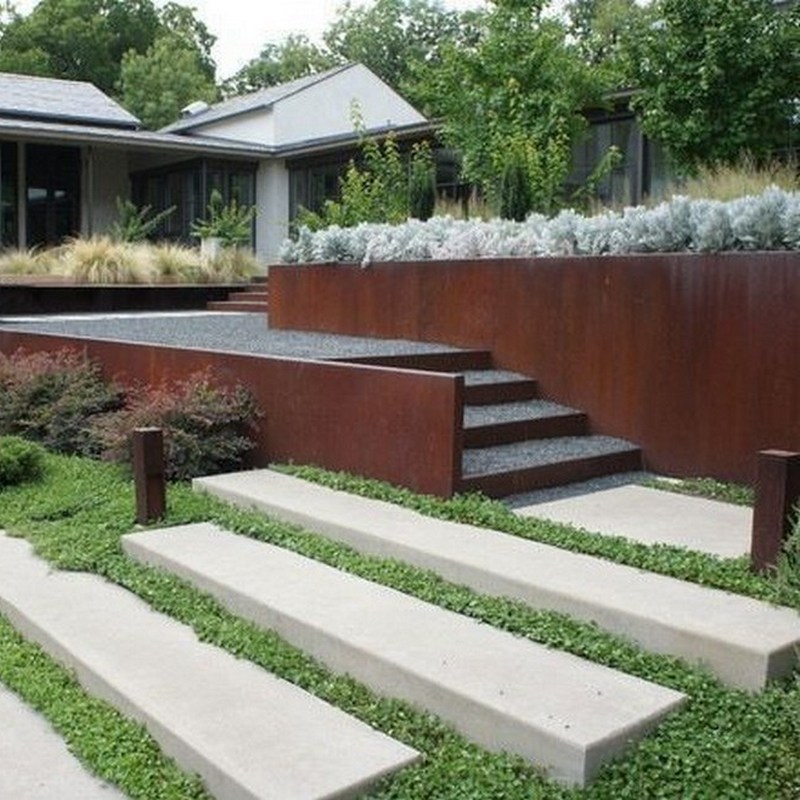

corten walls and steps
