CORTEN FENCE ATTACHED TO RAILS EXAMPLE

Corten Fence panel assembly example

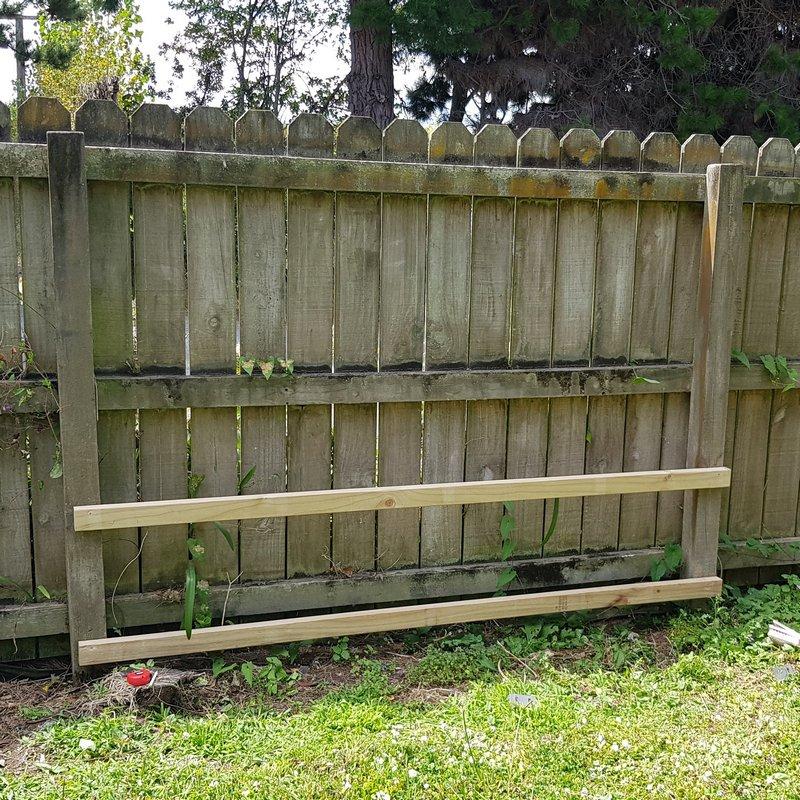

First rails attached to fence

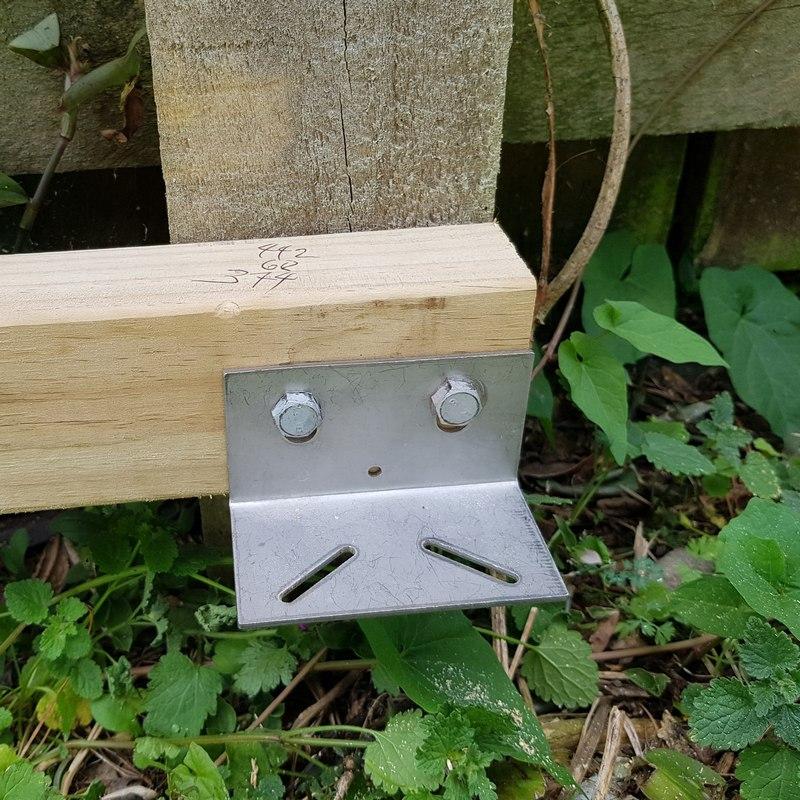

Corten stainless steel brackets, attached to fence rail

Fix bottom brackets to posts Fix top brackets to posts TEK screw panels to brackets

Delete the above image or replace it with a picture that illustrates your message. Click on the picture to change its rounded corner style.

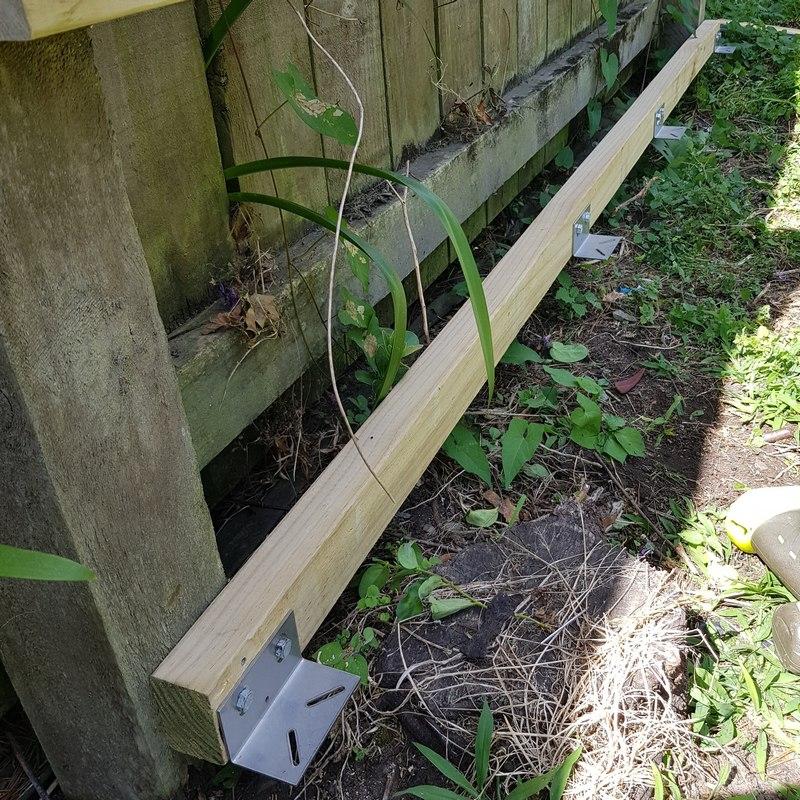

Bottom Row

Bottom row of stainless steel brackets fixed to bottom rail

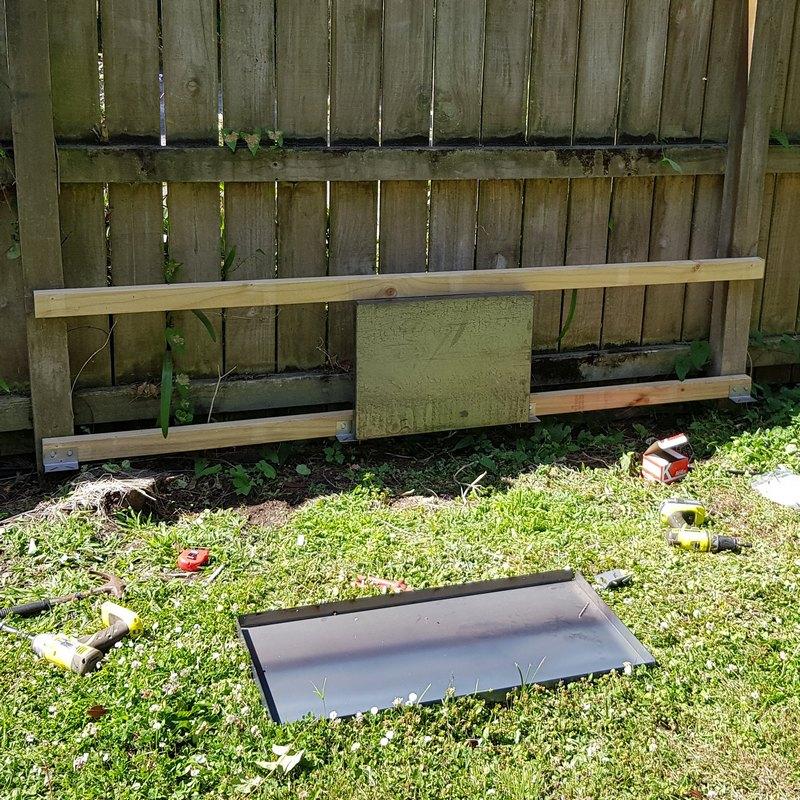

First Panel

First corten panel fixed to fence

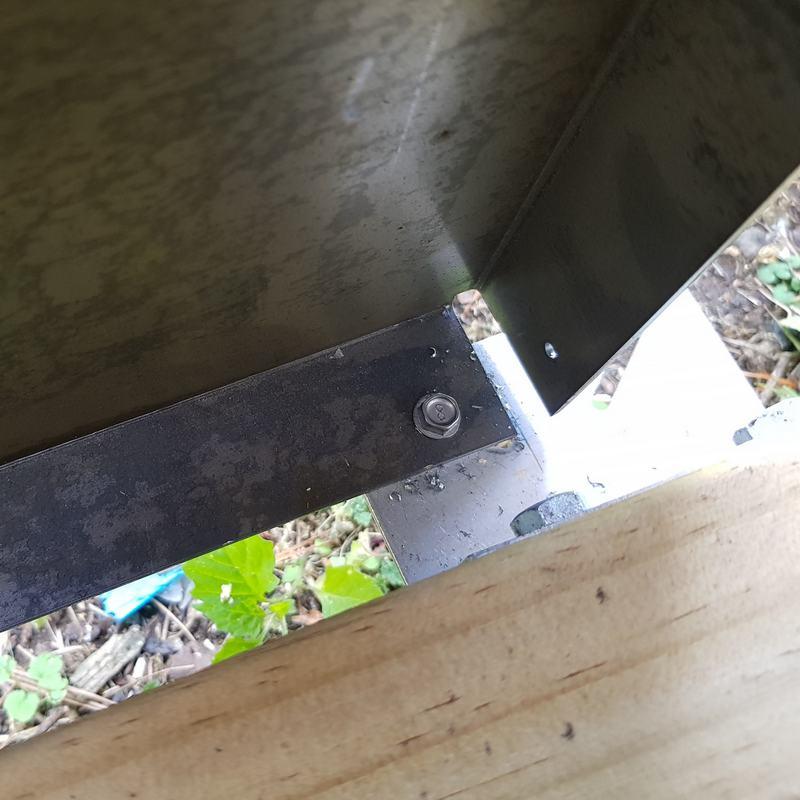

Screws

Stainless steel TEK screw secures panels to brackets, Do not use zinc coated tech screws to avoid bimetallic corrosion, which occurs when dissimilar metals are in contact

Corten Panels

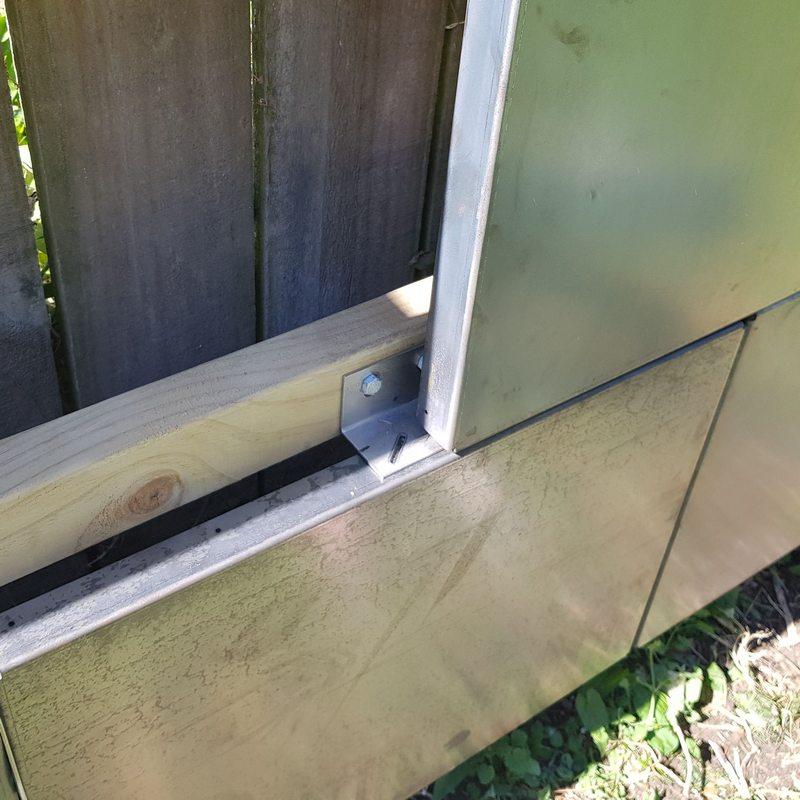

Corten panels being secured to stainless steel brackets

Corten Sizes

Corten fence panels, 900 x 450mm, 600 x 450mm and 300 x 450mm

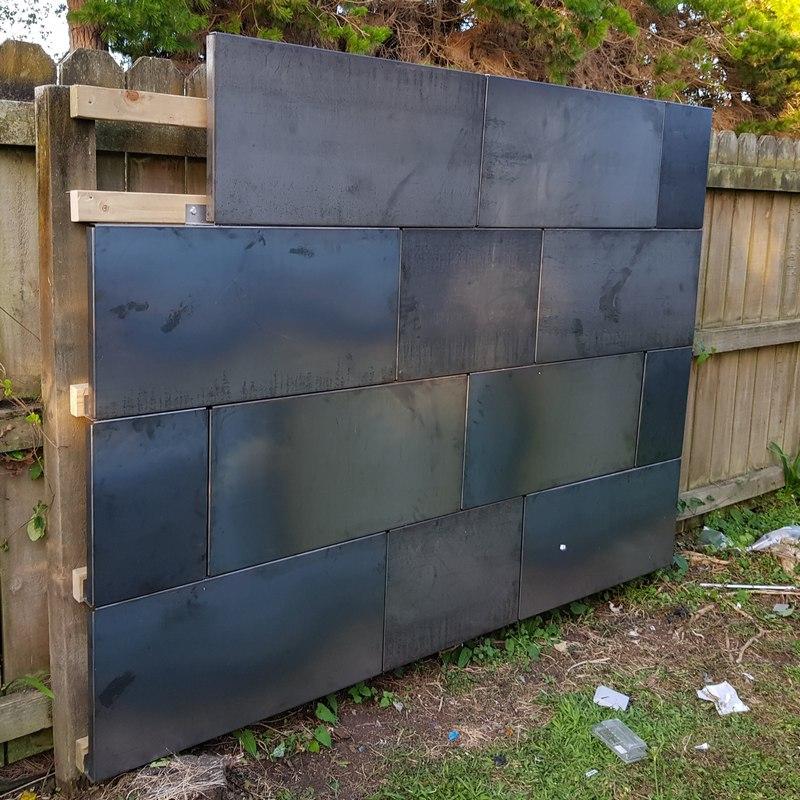

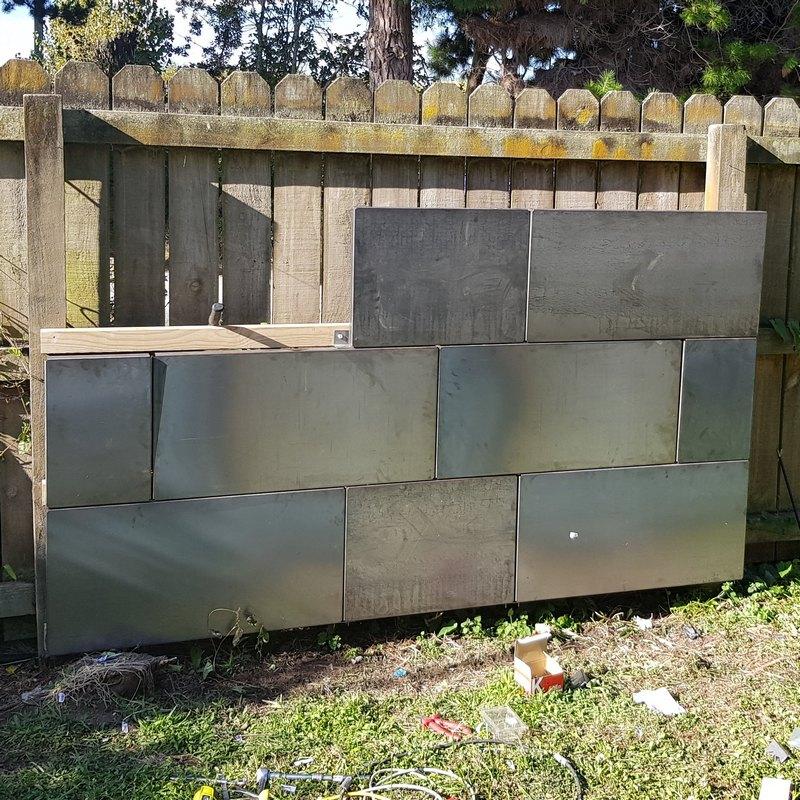

Corten Fence

Corten fence ready for last preformed steel panel

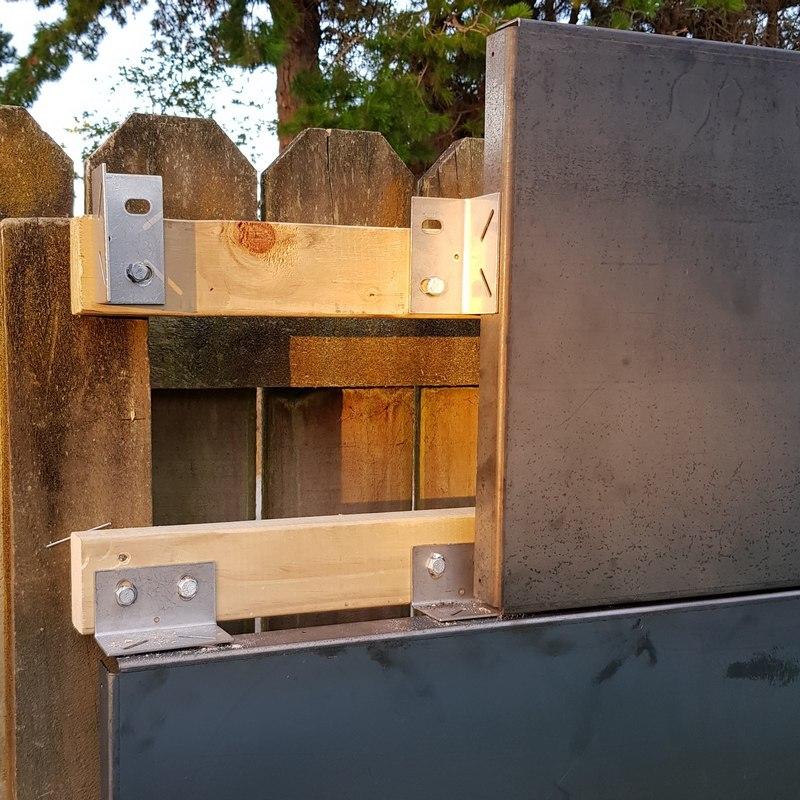

Last panel stainless brackets

Last panel stainless steel brackets in position

Finished corten fence, panels are un-weathered

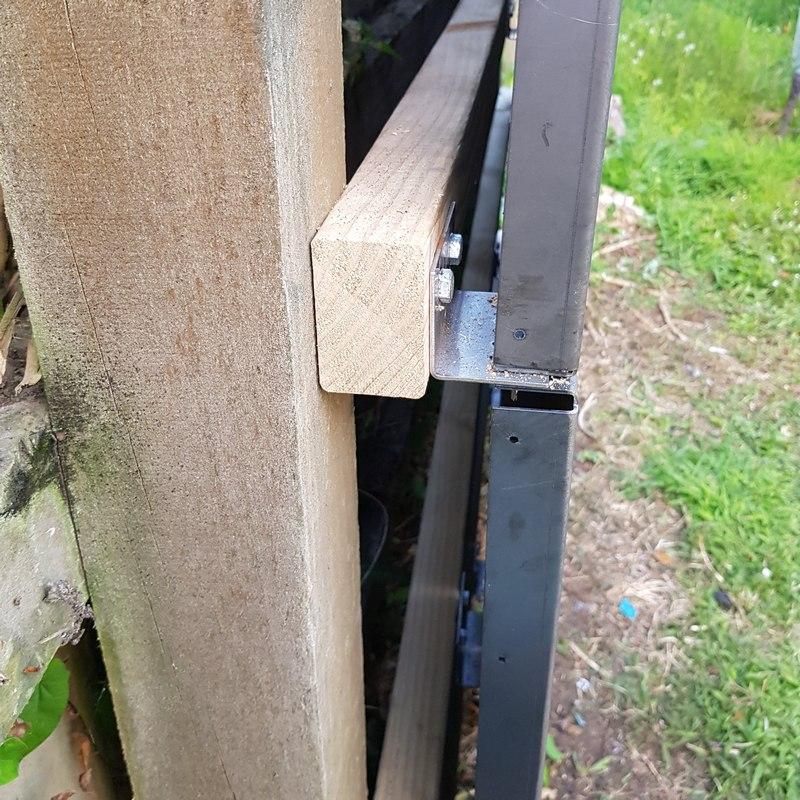

Corten panel bracket side profile, small pilot holes on sides

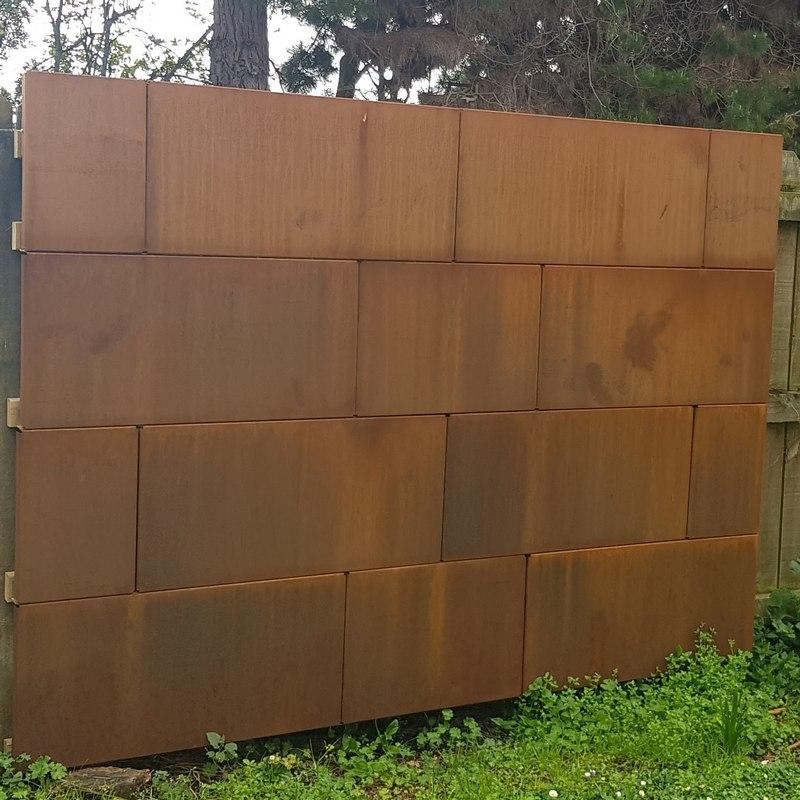

Weathering Panels

Corten panels at 12 weeks, starting to weather, and get the rust patina

Horizontal Corten Rails

Corten panels 2100 x 450mm attached to horizontal rails with stainless steel brackets

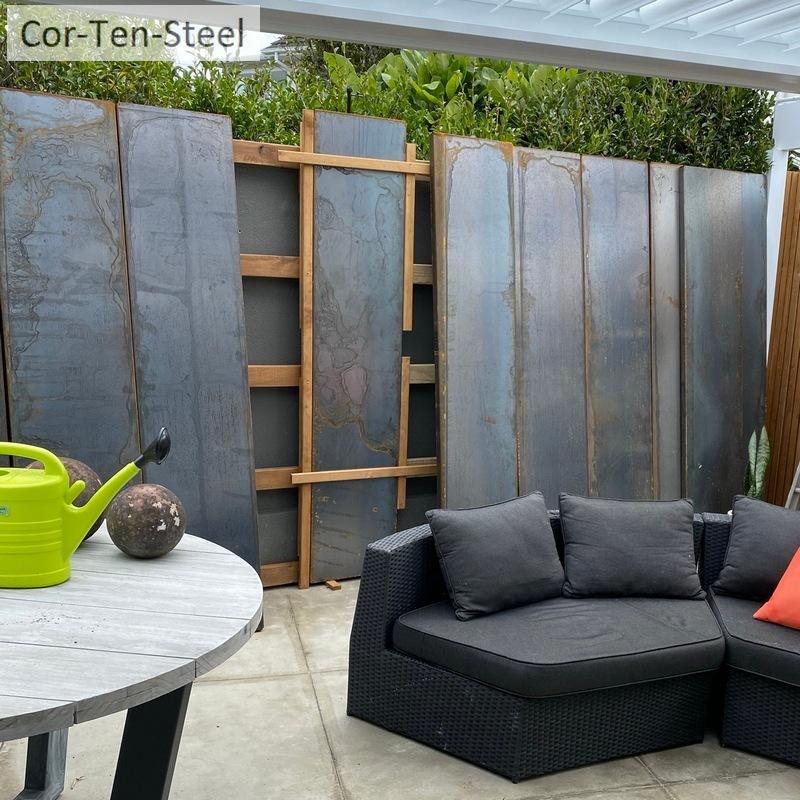

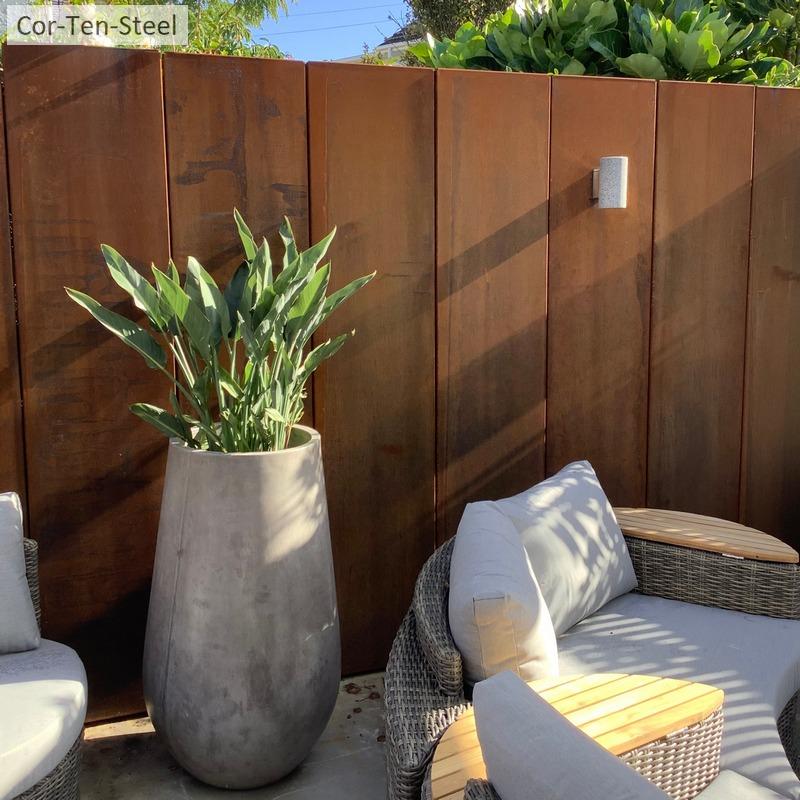

Vertical Corten Panels

corten panels fixed vertically after weathering

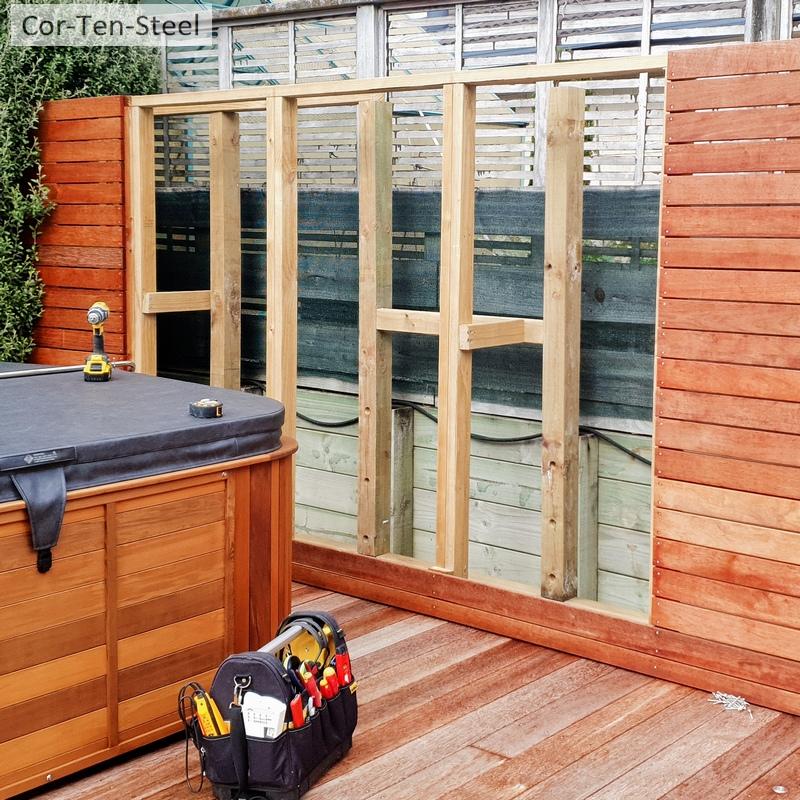

Fence Framing

Ready for panels to be installed

Corten Fence

1800 x 900mm panels are un-weathered

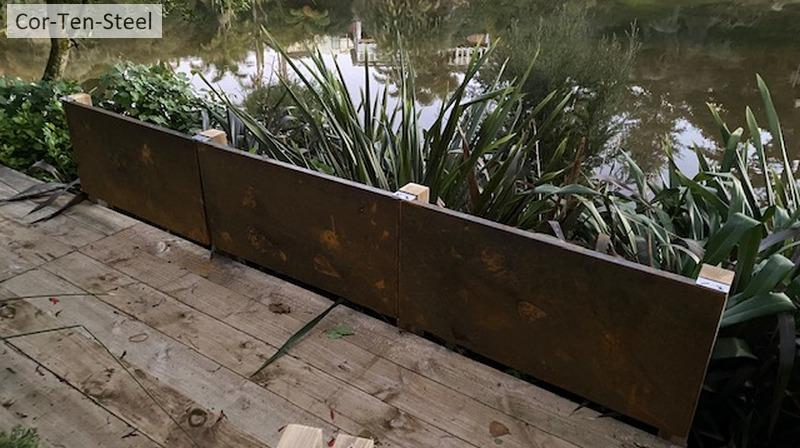

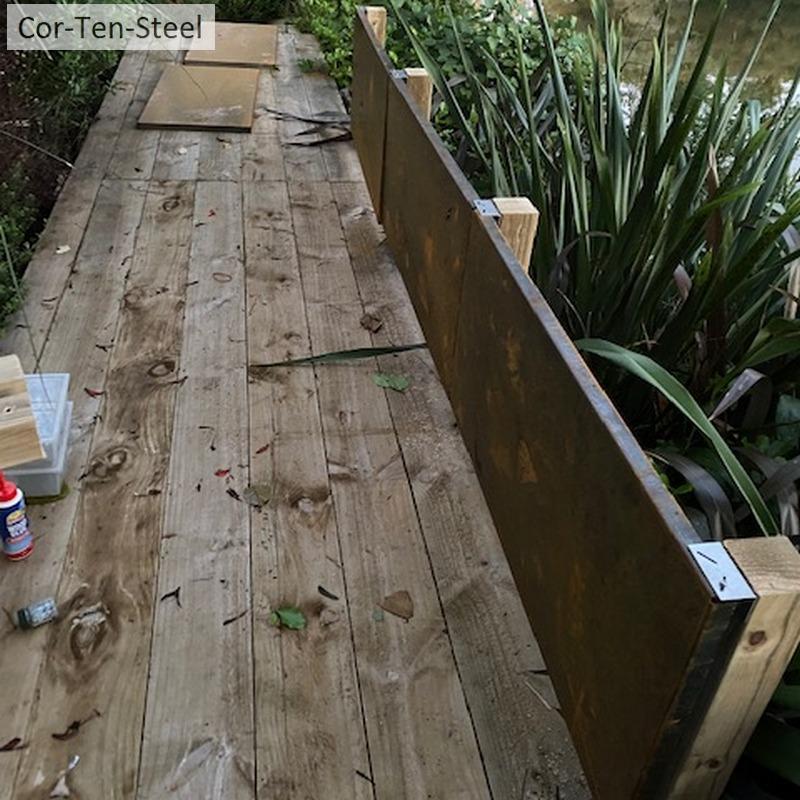

Low Fence

Panels with brackets

corten panels fixed with stainless steel brackets

Corten Panels Capped

corten panels capped with 200 x 50mm timber
