CORTEN GARDEN WALL 600MM TALL ASSEMBLY
Corten Retaining 600mm Instructions
600MM TALL CORTEN PANELS ARE SCREWED TOGETHER USING SS TEK SCREWS

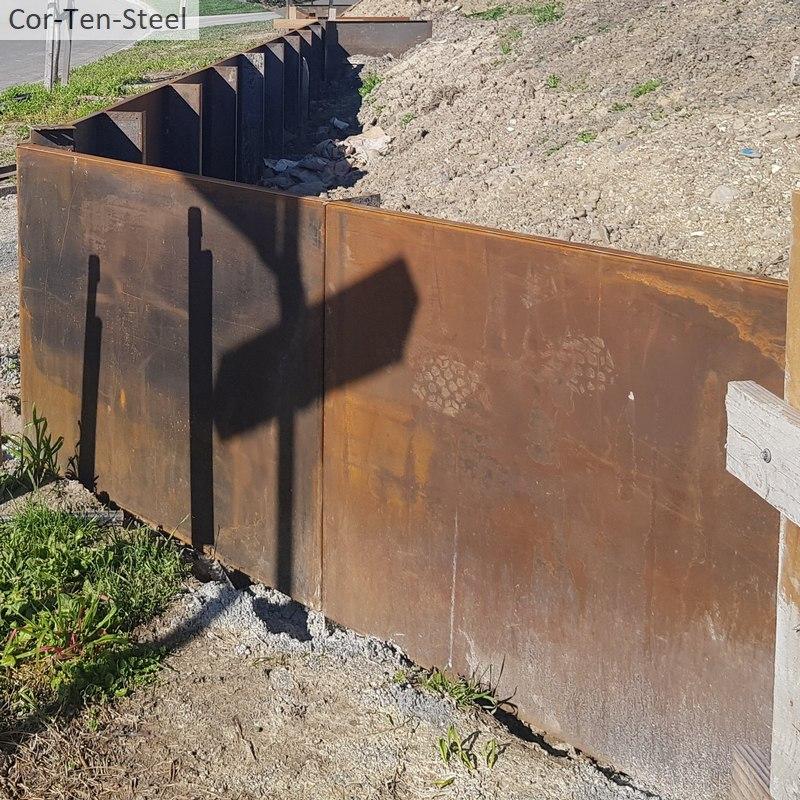

Support posts are installed between straight panels for stability
Set Corten angle posts
All corten is supplied as unweathered blue steel, and oxidises over time, with exposure to the elements.
Corten wall ready to TEK
All corten is supplied as unweathered blue steel, and oxidises over time, with exposure to the elements.
Corten wall ready to TEK
All corten is supplied as unweathered blue steel, and oxidises over time, with exposure to the elements.
Corten Panels
All corten is supplied as unweathered blue steel, and oxidises over time, with exposure to the elements.
Corten Capping
All corten is supplied as unweathered blue steel, and oxidises over time, with exposure to the elements.
Corten Panels
All corten is supplied as unweathered blue steel, and oxidises over time, with exposure to the elements.
Corten Steel Assembly
Simple assembly using TEK screws
Corten Panels
Corten Panels screwed together with SS TEK screws
Corten Posts
3mm Corten Angle Post TEK screwed to panels
Pilot Holes
Pre drilled pilot holes
Our newest tutorials
Tools needed
5/16th” (7.9mm) Nut driver
Variable speed drill

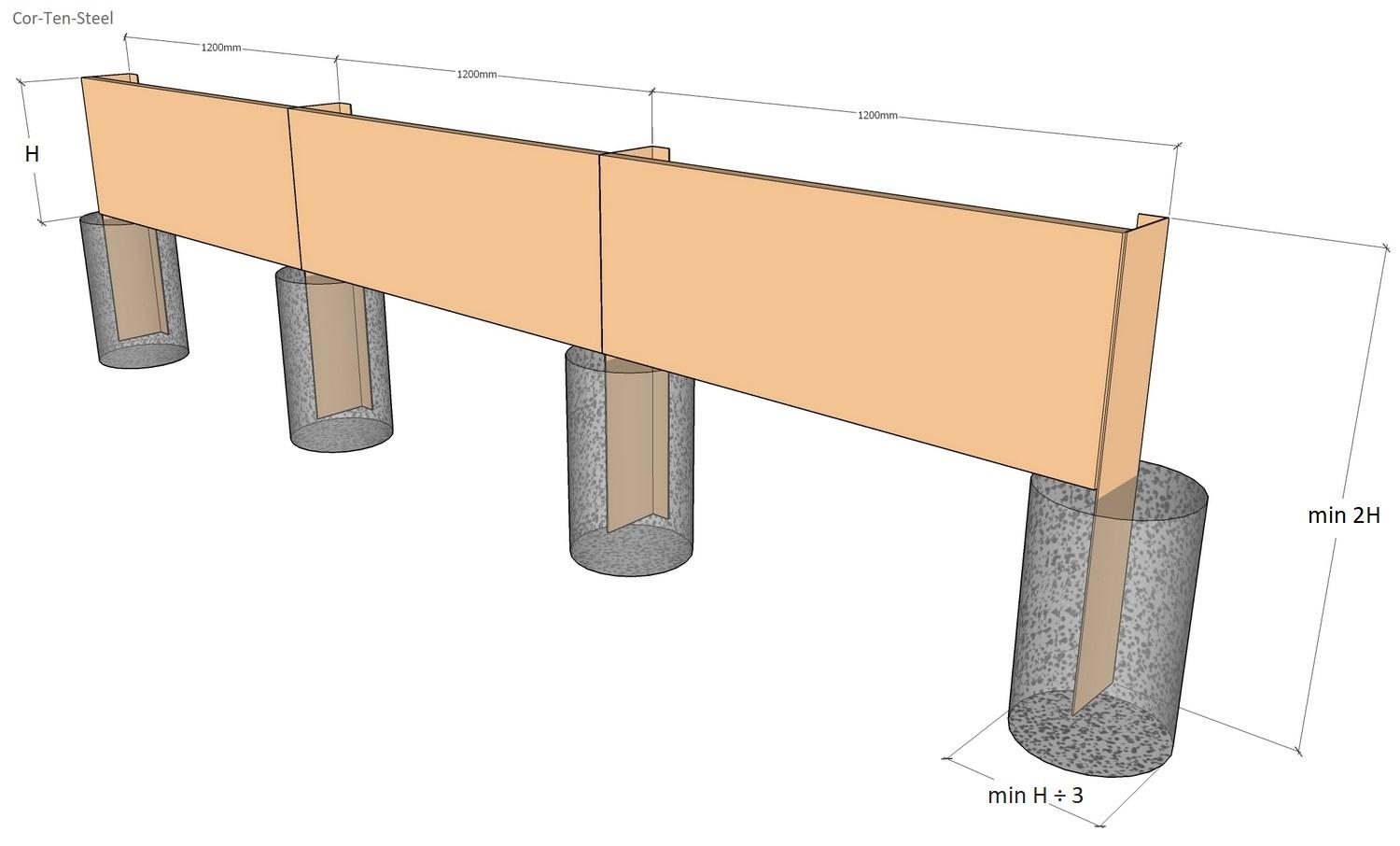

Angle post lengths
160 x 53 x 3mm posts are placed between straight panel sections
800mm
PARTS LIST – ALL 600MM TALL
Not sure what you need?
Just email us a pic and a sketch, we should then be able to get back to you with a suggested corten layout .
[email protected]
Straight Panel Lengths
450mm x 450mm
External 90deg corners
450mm radius
600mm x 600mm
External 45deg corners
450mm radius
600mm x 600mm
External 90deg quarter curve
900mm
600mm x 600mm
Internal 90deg corners
1200mm
600mm x 600mm

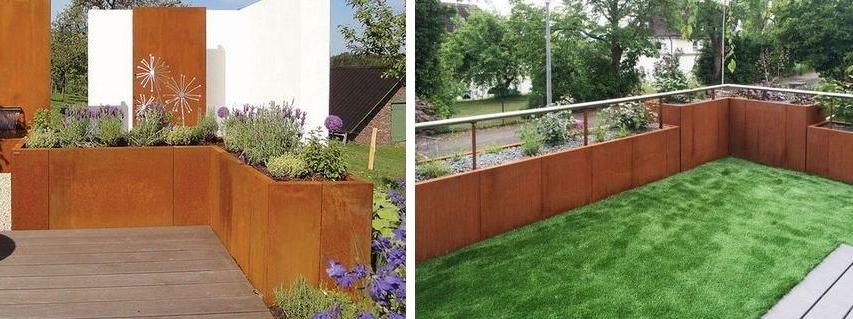

Modern garden
Modern garden using corten steel retaining walls
Modern garden
Modern garden using corten steel retaining walls
Modern garden
Modern garden using corten steel retaining walls
All walls must have adequate drainage to relieve any pressure
