Corten Exterior Rain Screen Cladding

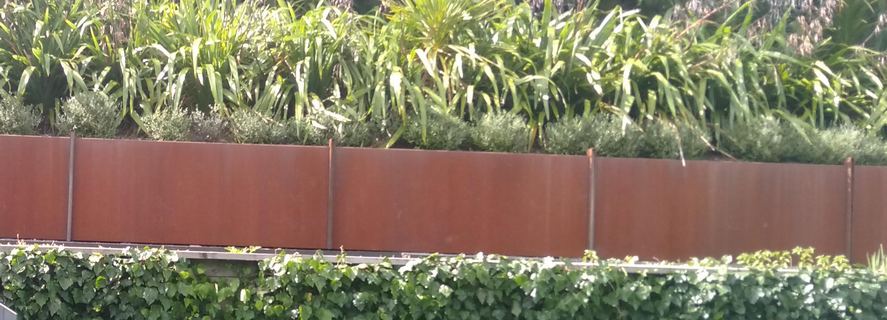

  • corten retaining walls rusty steel
  • retaining walls made from corten steel
  • retaing wall medium made with corten steel
1234

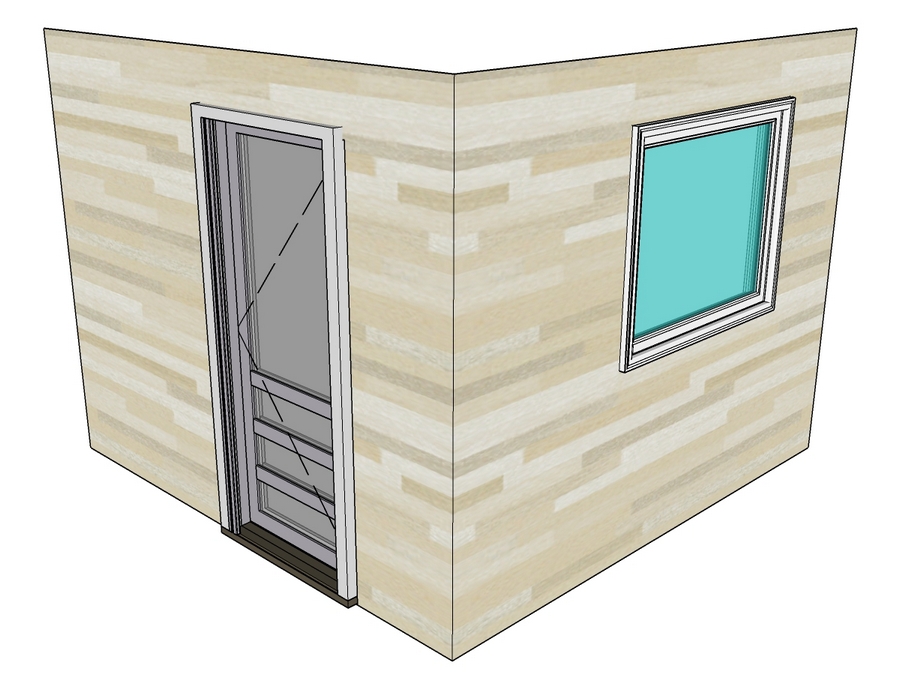

plywood cladding over cavity

Step 1

Use 17mm Structural plywood H3.2 treated to create a weathertight cavity wall

All joints in the plywood to be flashed, Windows and other openings to be flashed and weathertight before corten rain screen is installed

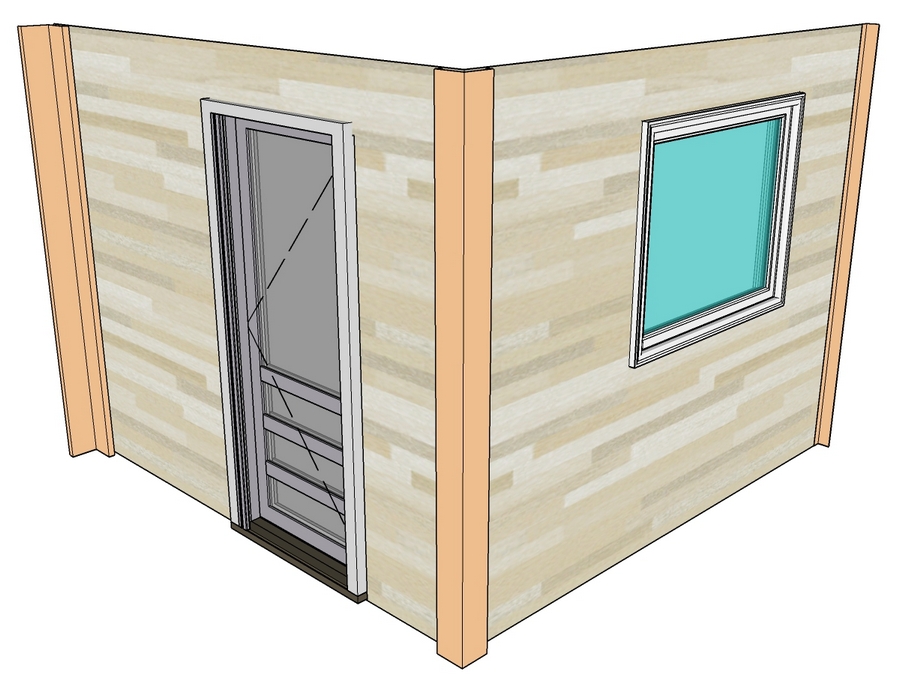

Corten external and internal corners fixed to structure with stainless steel fixing brackets

corten corner profiles

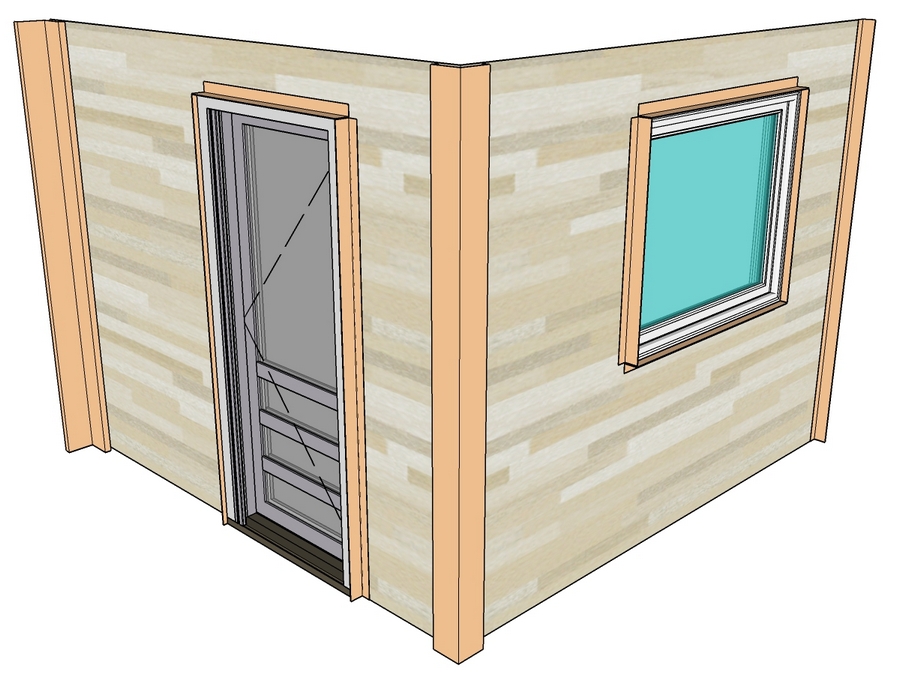

Corten corten widow flashings fixed to structure, min of 3mm gap between corten and aluminium joinery,
Place DPC insulation barrier between treated plywood and corten steel.

Corten window profiles

Install corten rain screen to plywood clad using stainless steel brackets fixed with stainless steel coach screws

bracket fixing details

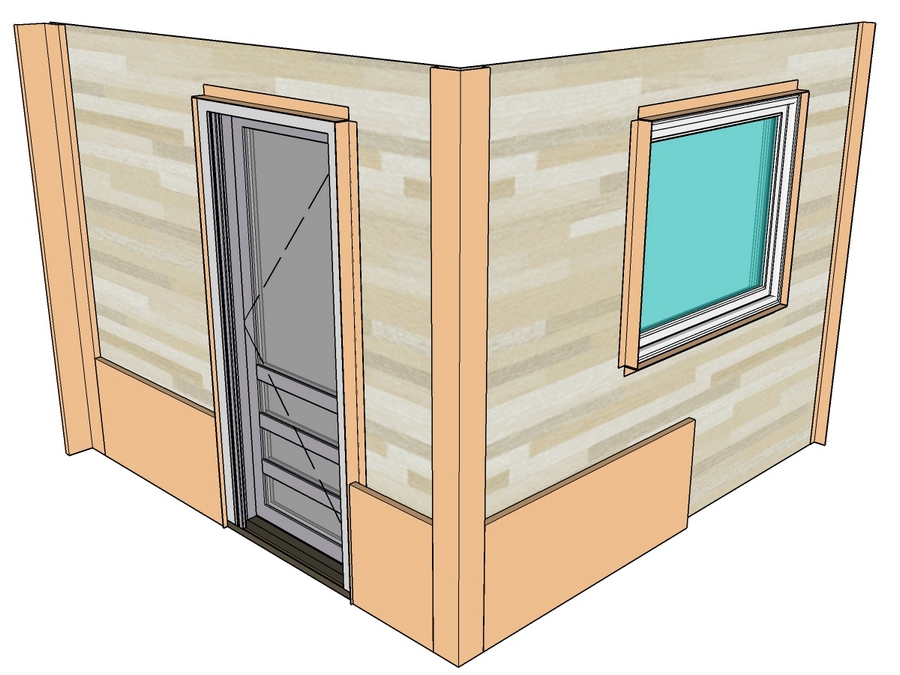

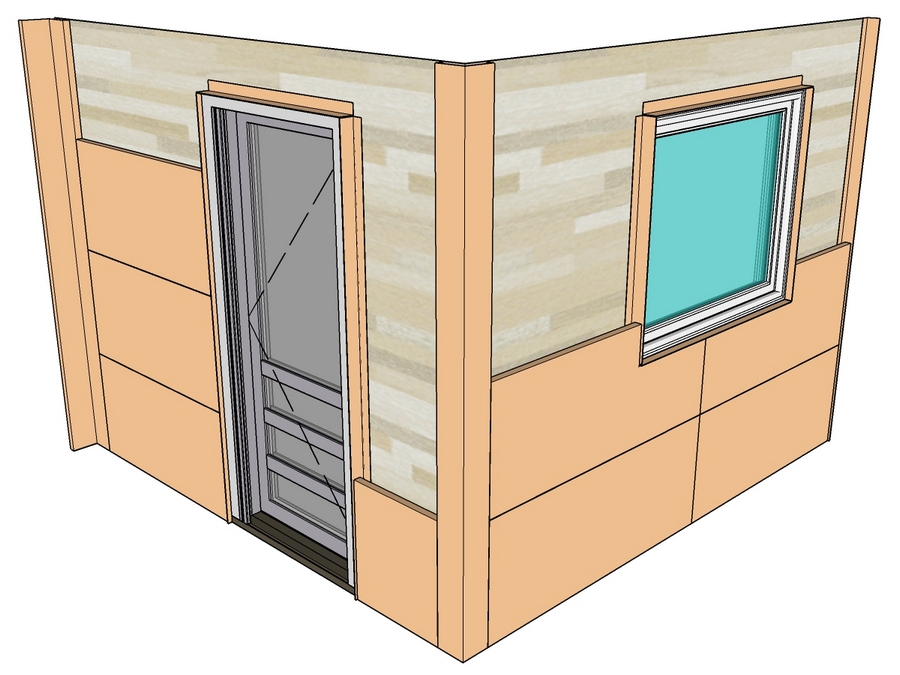

corten panels part installed

Continue installing corten panels to walls

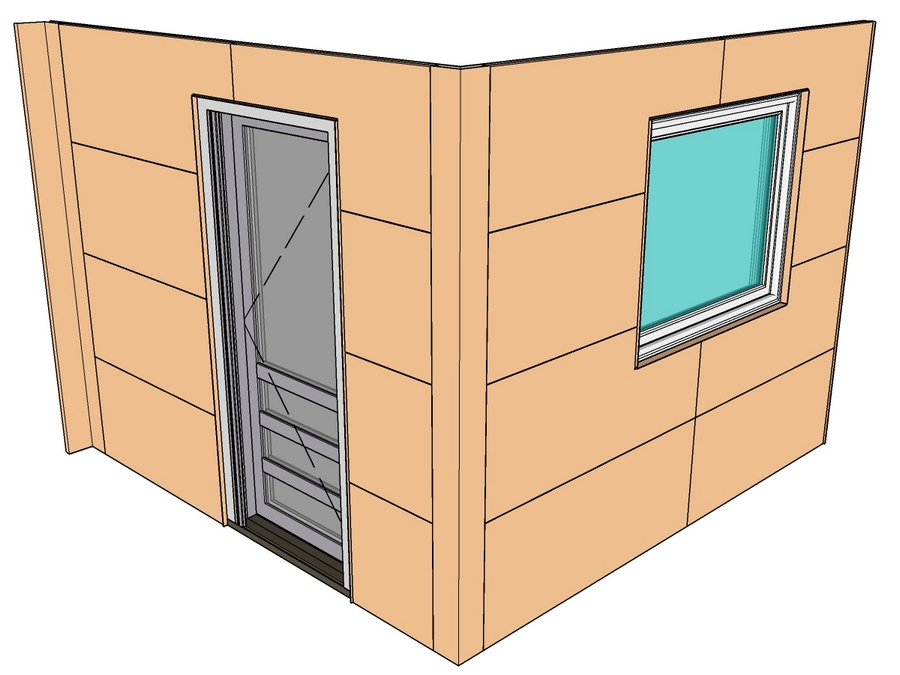

corten panels all installed

Weathertight plywood structure, with corten rain screen cladding

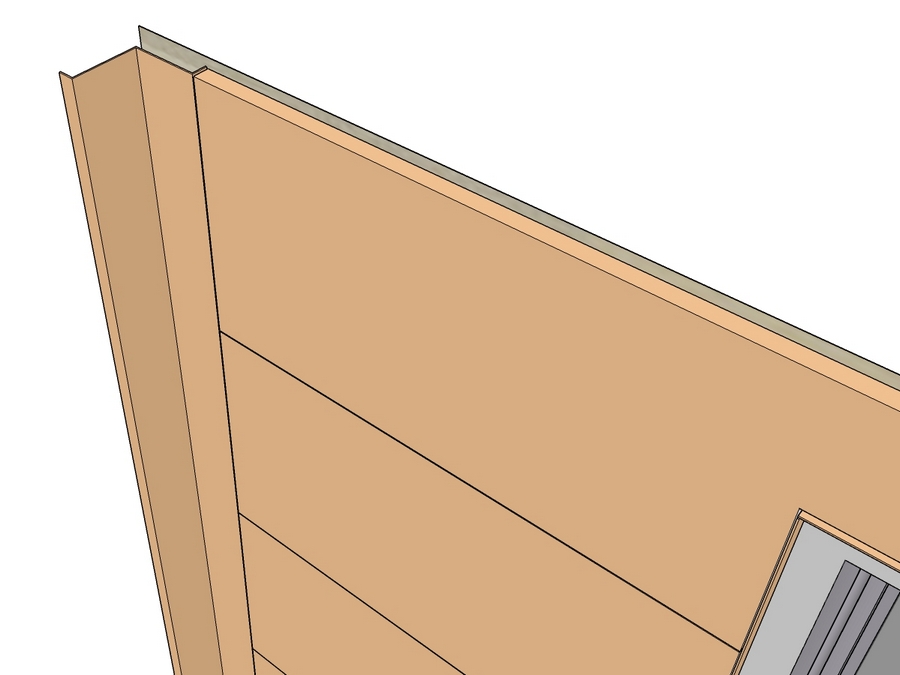

Internal corner detail

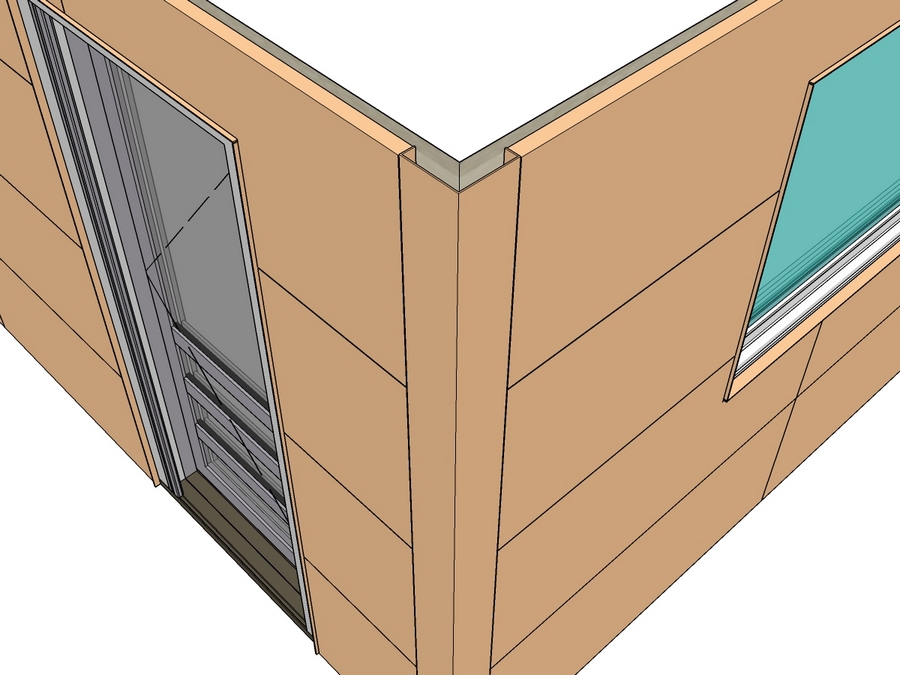

External corner detail

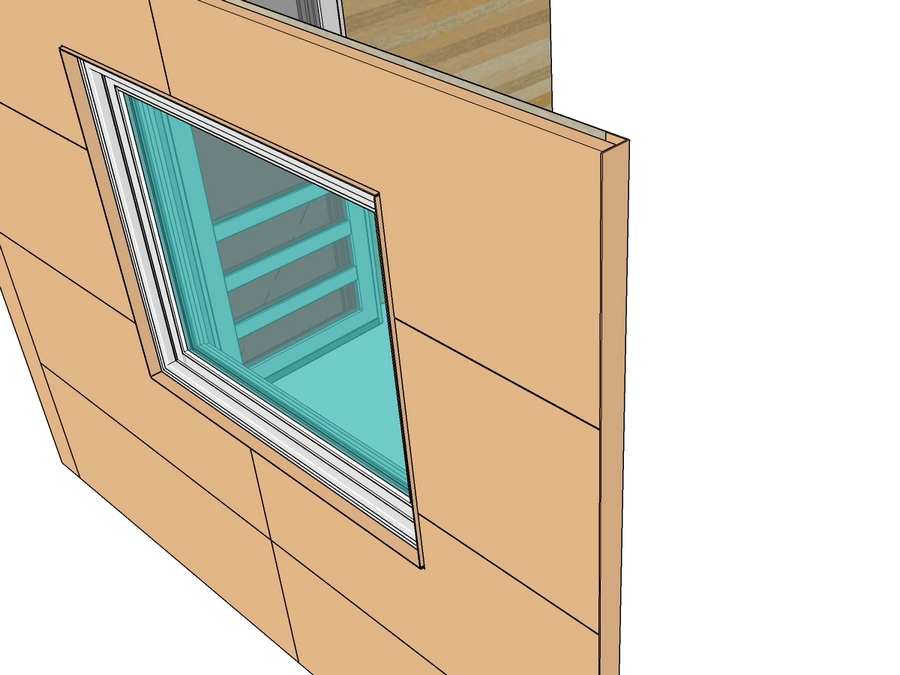

Corten rain screen around window

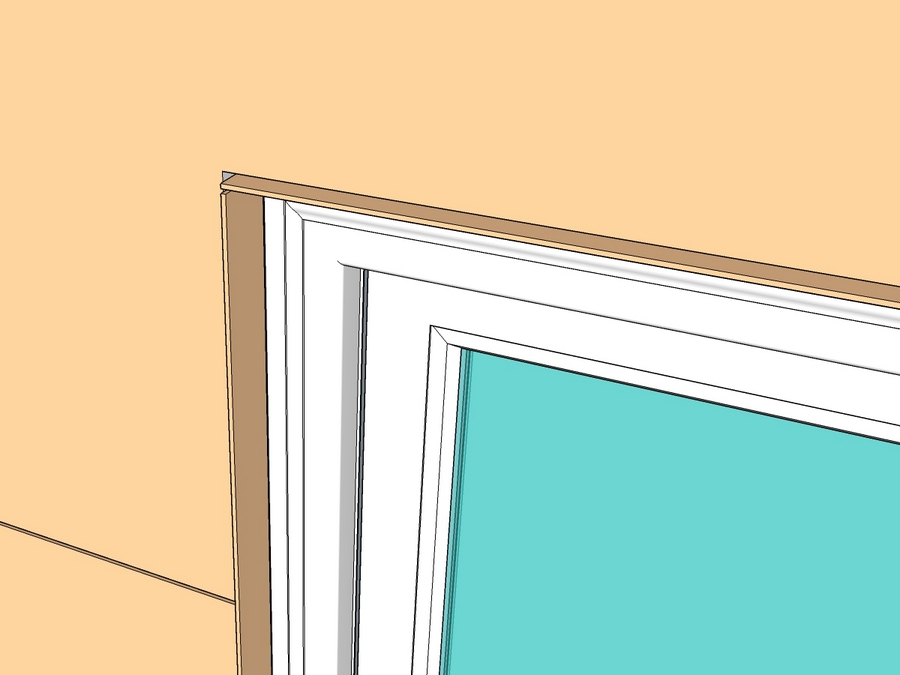

corten cladding window detail

Close up of corten window detail
