Corten Garden Wall 375mm Tall Assembly
375mm tall Corten Panels are screwed together using SS TEK screws

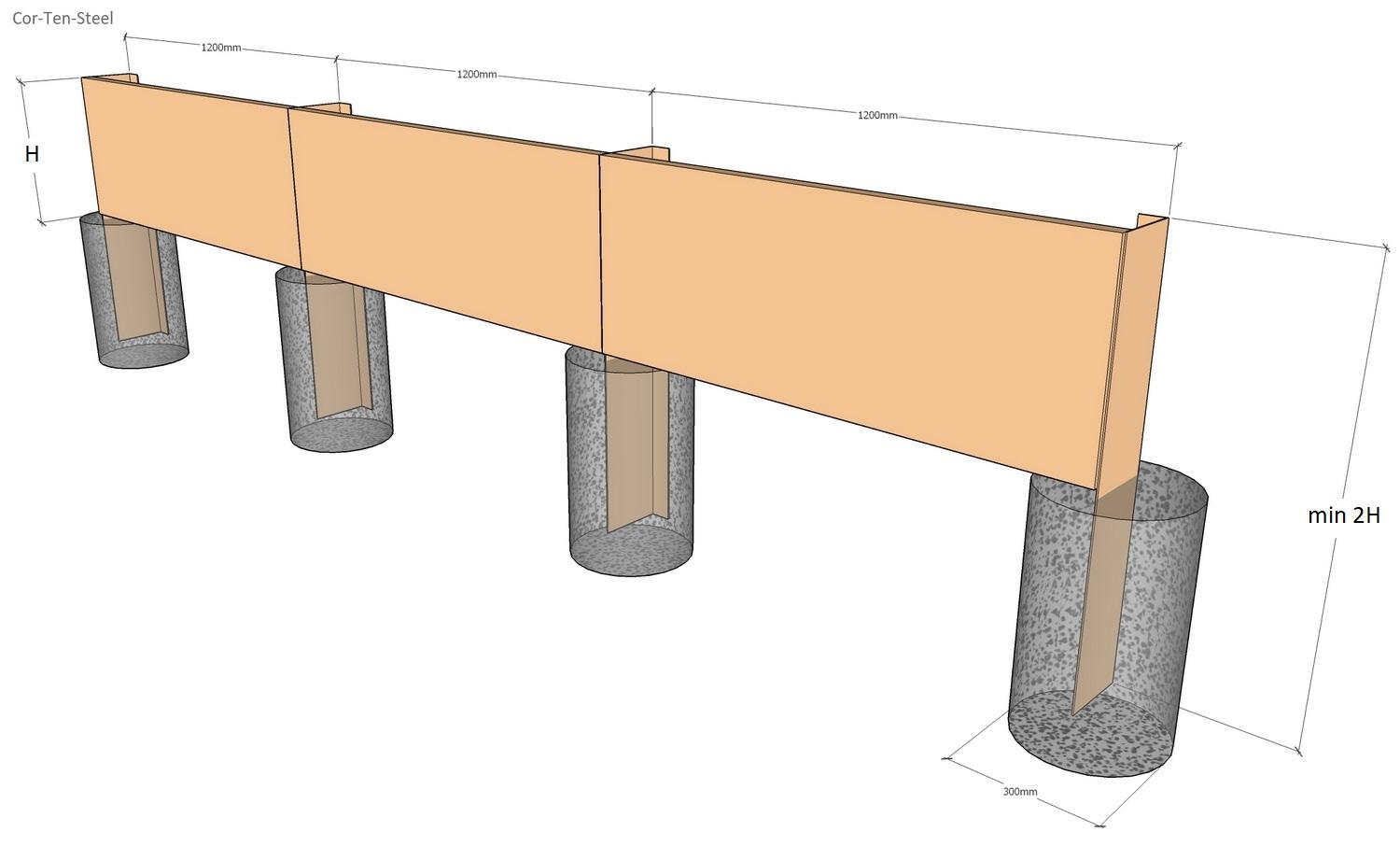

Support posts are installed between straight panels for stability
Set Corten angle posts in concrete
All corten is supplied as unweathered blue steel, and oxidises over time, with exposure to the elements.
Corten wall ready to TEK screw next panel
All corten is supplied as unweathered blue steel, and oxidises over time, with exposure to the elements.
Corten wall ready to TEK screw next panel
All corten is supplied as unweathered blue steel, and oxidises over time, with exposure to the elements.
Corten Panels screwed together with SS TEK screws
All corten is supplied as unweathered blue steel, and oxidises over time, with exposure to the elements.

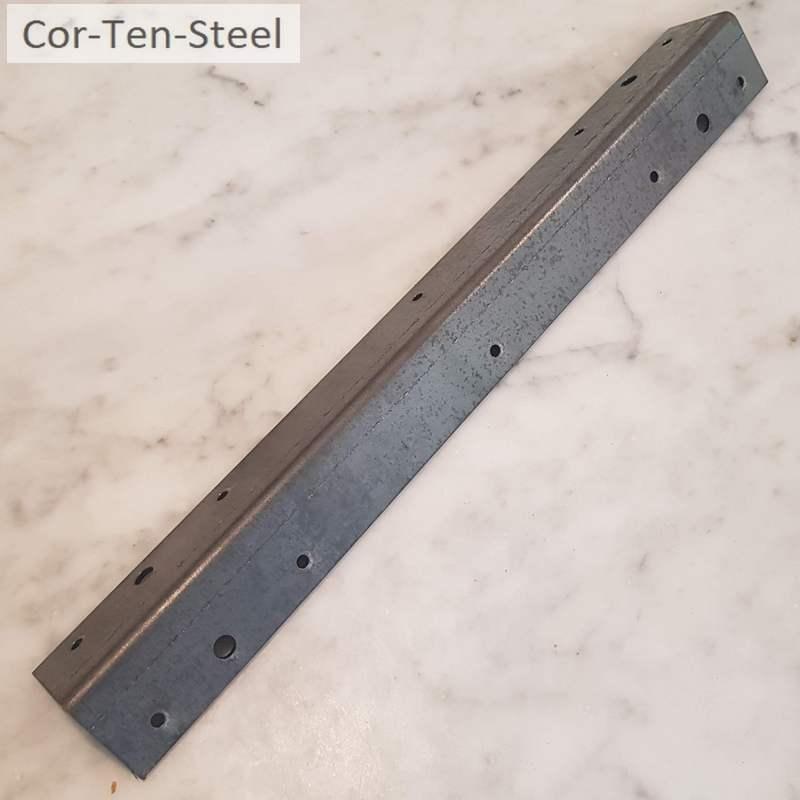

3mm Corten Angle Post TEK screwed to panels
Posts are placed between straight panel sections
All posts have pre-drilled pilot holes, matching the corten pilot holes
Pre drilled pilot holes
All corten panels, posts, and joining pieces have pre drilled pilot holes
This makes assembly with stainless steel TEK screws quick and easy

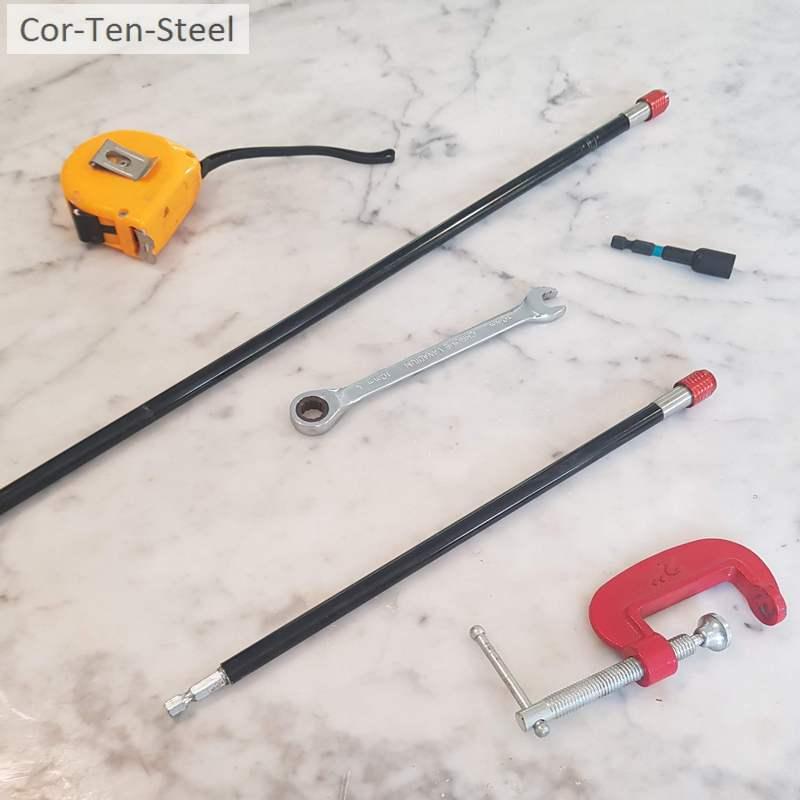

Tools needed
5/16th” (7.9mm) Nut driver
Variable speed drill
G clamps
Ratchet spanner
Tape measure
Drill extension bar
Angle post lengths
3mm thick posts are placed between straight panel sections
597mm
747mm
800mm
897mm
1197mm
Post embedment is half post length
Select post length based on soil type and loads on wall,
Soft soils with full height retaining, should use the longest post option, which provides the most stability
If the ground behind the wall is supporting a driveway or other surcharge loads, the panel lengths should be shortened and the post lengths increased
Drainage must be installed behind all retaining walls

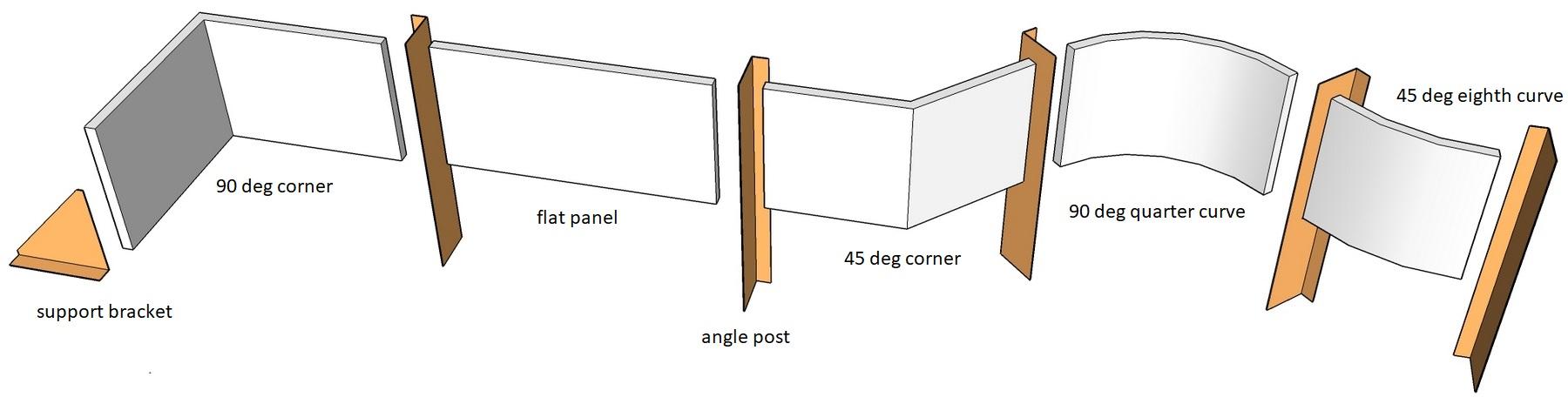

Parts List – all 375mm tall
Not sure what you need?
Just email us a pic and a sketch, we should then be able to get back to you with a suggested corten layout .
info@cor-ten-steel.co.nz
External 45deg eighth curve
900mm radius
Internal 45deg eighth curve
900mm radius

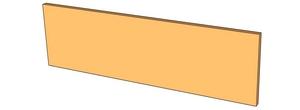

Straight Panel Lengths
300mm
450mm
600mm
750mm
900mm
1200mm
1500mm
1800mm
2100mm
2400mm

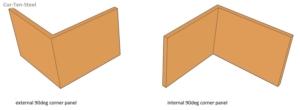

External 90deg corners
450mm x 450mm
600mm x 600mm
Internal 90deg corners
450mm x 450mm
600mm x 600mm
External 45deg corners
450mm x 450mm
600mm x 600mm
Internal 45deg corners
450mm x 450mm
600mm x 600mm

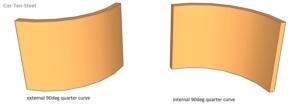

External 90deg quarter curve
450mm radius
900mm radius
Internal 90deg quarter curve
450mm radius
900mm radius

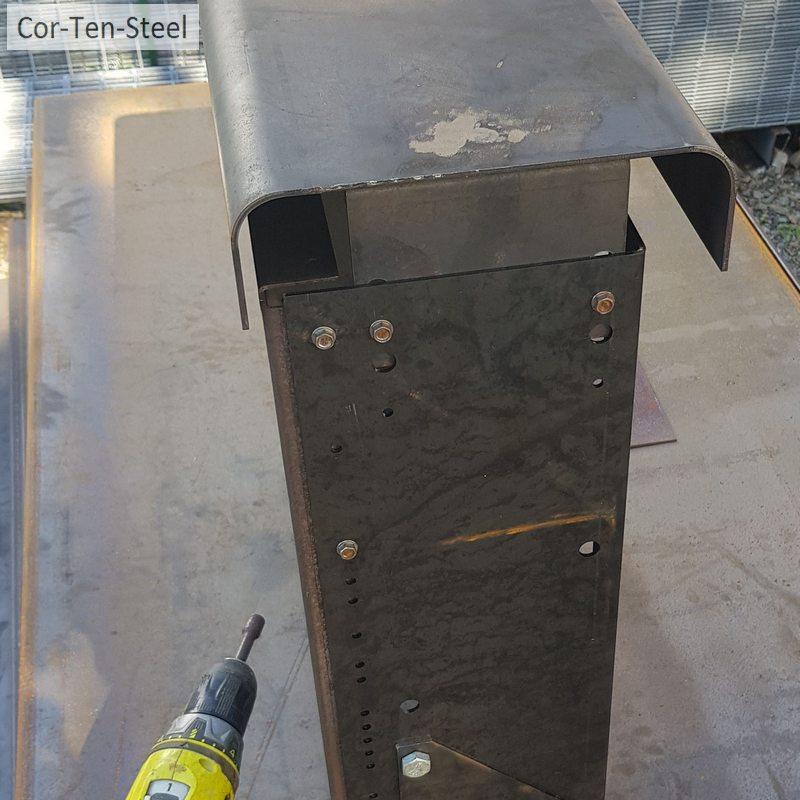

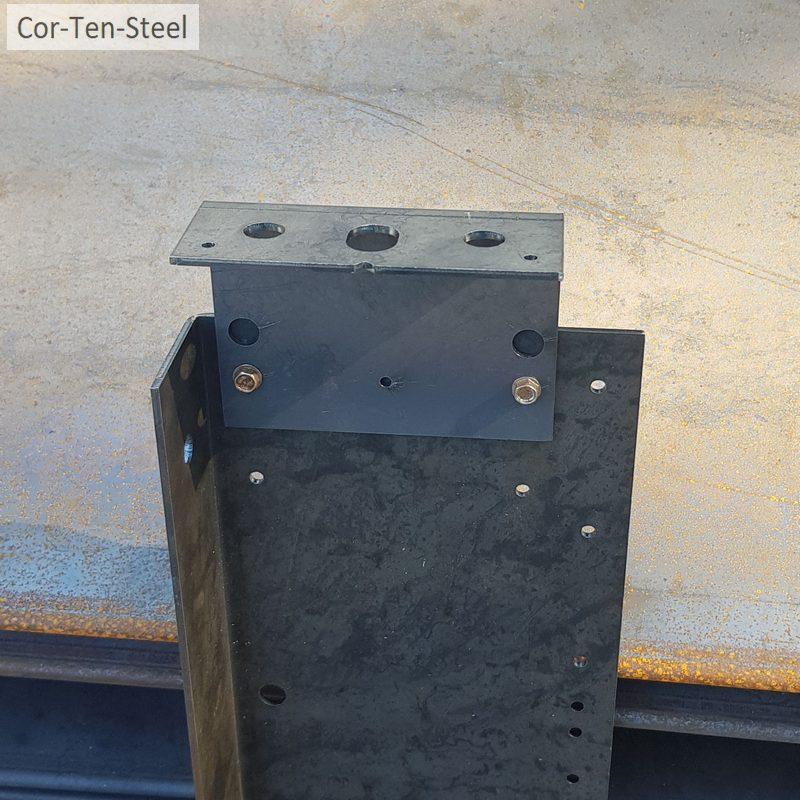

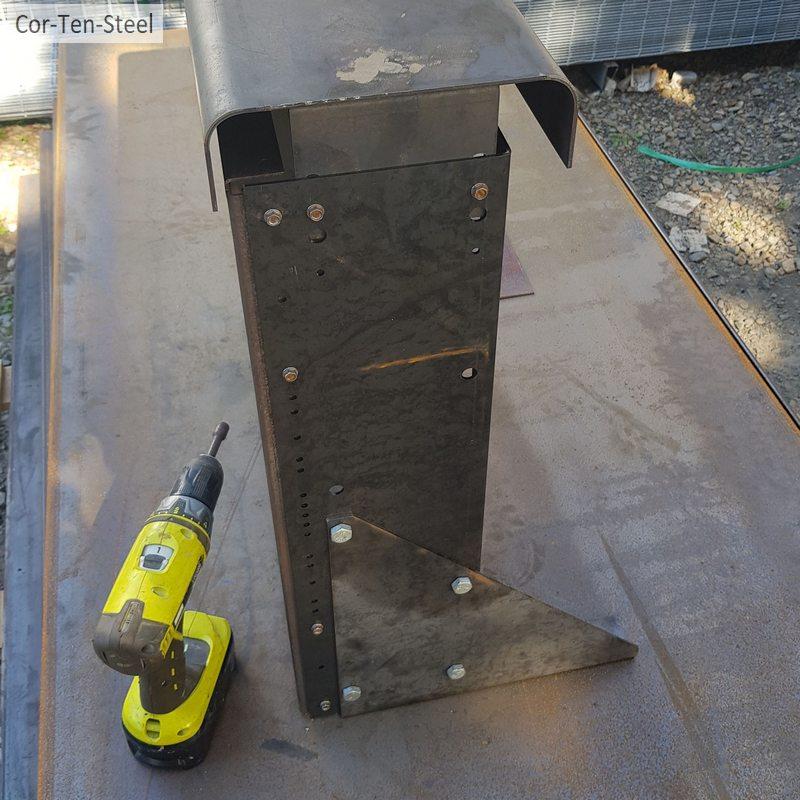

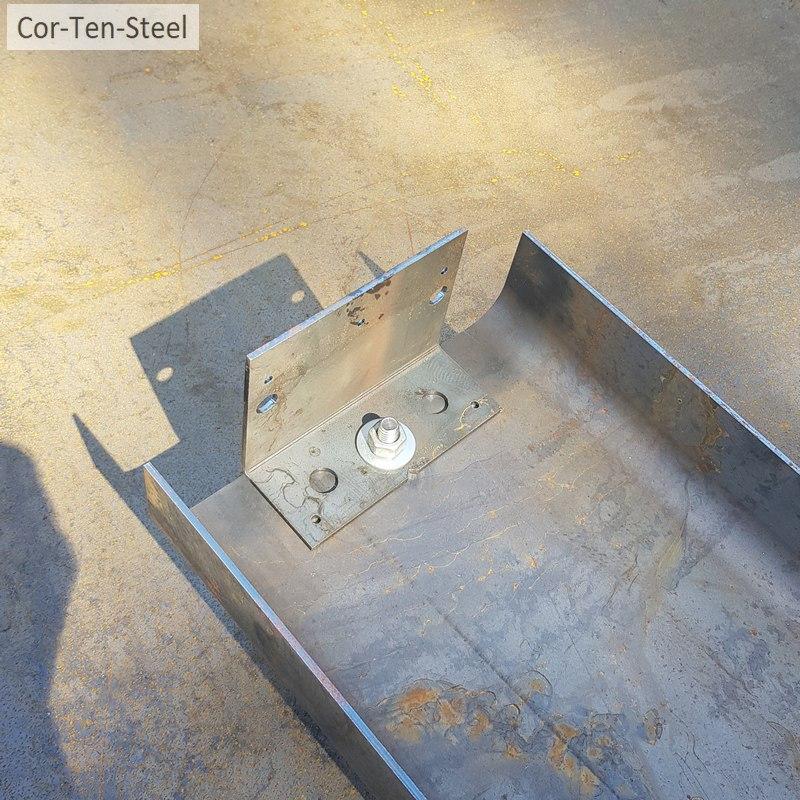

Corten capping can be added to the wall
Capping lengths match corten panel sizes
Modern garden using corten steel retaining walls
Modern garden using corten steel retaining walls
Modern garden using corten steel retaining walls
All corten retaining walls must have adequate drainage to relieve any hydrostatic pressure
