CORTEN GARDEN WALL 300MM TALL ASSEMBLY
Corten Retaining 300mm Instructions
300MM TALL CORTEN PANELS ARE SCREWED TOGETHER USING SS TEK SCREWS
Support posts are installed between straight panels for stability
Set Corten angle posts in concrete
All corten is supplied as unweathered blue steel, and oxidises over time, with exposure to the elements.
Corten wall ready to TEK screw next panel
All corten is supplied as unweathered blue steel, and oxidises over time, with exposure to the elements.

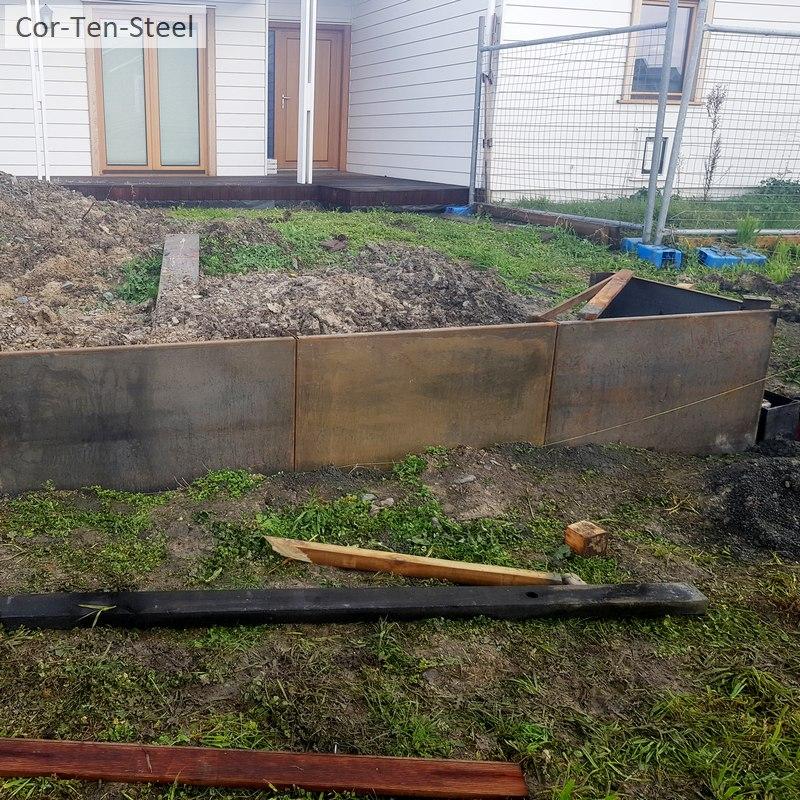

Front of 1200mm long Corten Panels
All corten is supplied as unweathered blue steel, and oxidises over time, with exposure to the elements.
Corten Panel Assembly
Assembly with stainless steel TEK screws is quick and easy
Easy Assembly
Corten Panels screwed together with SS TEK screws.
Durable material
All corten is supplied as unweathered blue steel, and oxidises over time.
Pilot holes
All corten panels, posts, and joining pieces have pre drilled pilot holes.
How-to videos
Post selection guide
Angle post lengths
Post thickness
3mm thick posts are placed between straight panel sections
300MM TALL - ALL PARTS LIST
Explore Our Product Range
Discover our diverse range of steel products for your next project.
Straight Panel Lengths
Available lengths for straight panels to suit various project requirements.
Offered lengths: 300mm, 450mm, 600mm, 750mm, 900mm, 1200mm.
External 90deg corners
Precision-cut external 90-degree corners for seamless integration.
Available sizes: 450mm x 450mm, 600mm x 600mm.
External 45deg corners
Expertly crafted external 45-degree corners for unique designs.
Available sizes: 450mm x 450mm, 600mm x 600mm.
External 90deg quarter curve
Smooth external 90-degree quarter curves for refined aesthetics.
Radius options: 450mm radius, 900mm radius.
Not sure what you need?
Just email us a pic and a sketch, we should then be able to get back to you with a suggested corten layout .
[email protected]
Corten products overview
Modern Garden
Modern garden using corten steel retaining walls
Modern Garden
Modern garden using corten steel retaining walls
Modern Garden
Modern garden using corten steel retaining walls
All corten retaining walls must have adequate drainage
