Corten corten retaining wall 4.63m long x 900mm tall with top capping

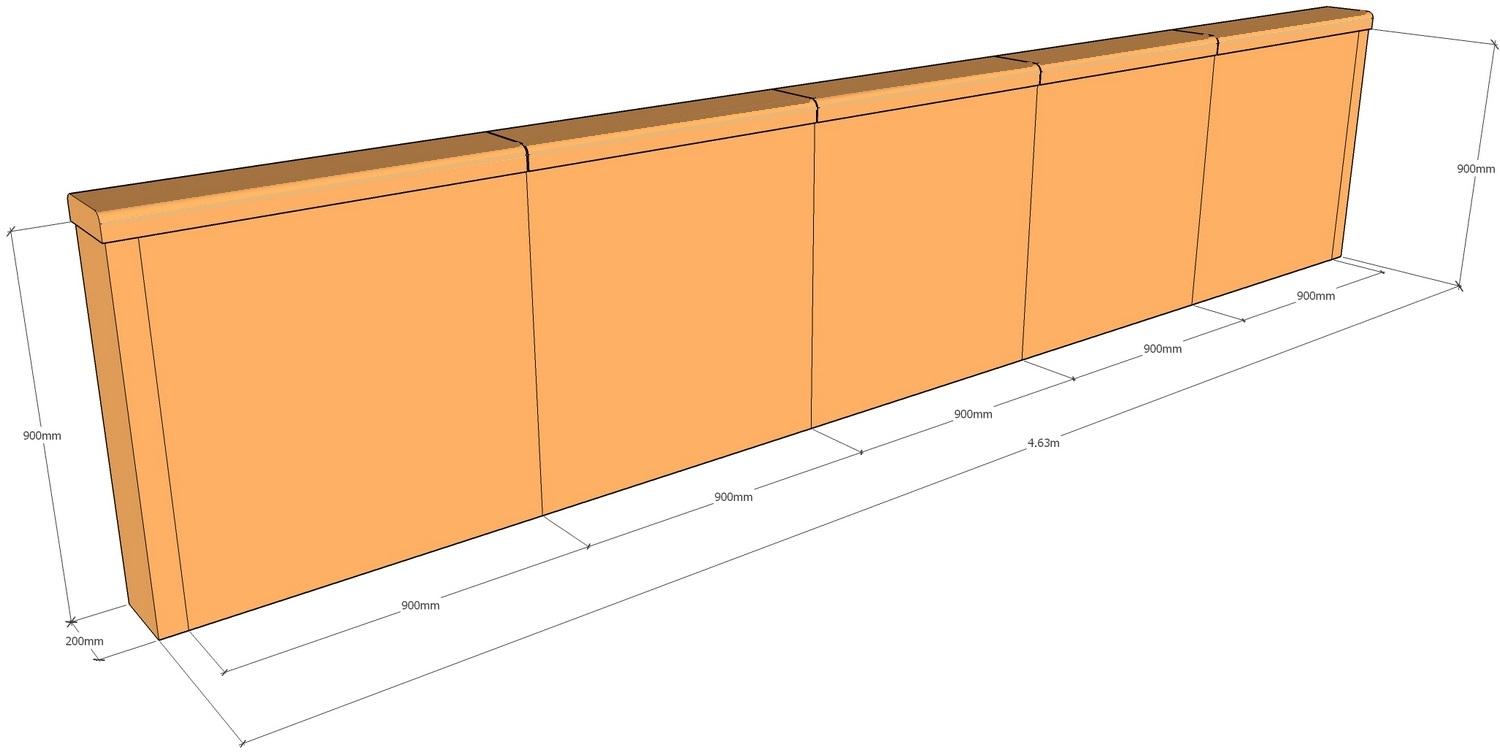

corten retaining wall with top cap 4.63m long x 900mm tall

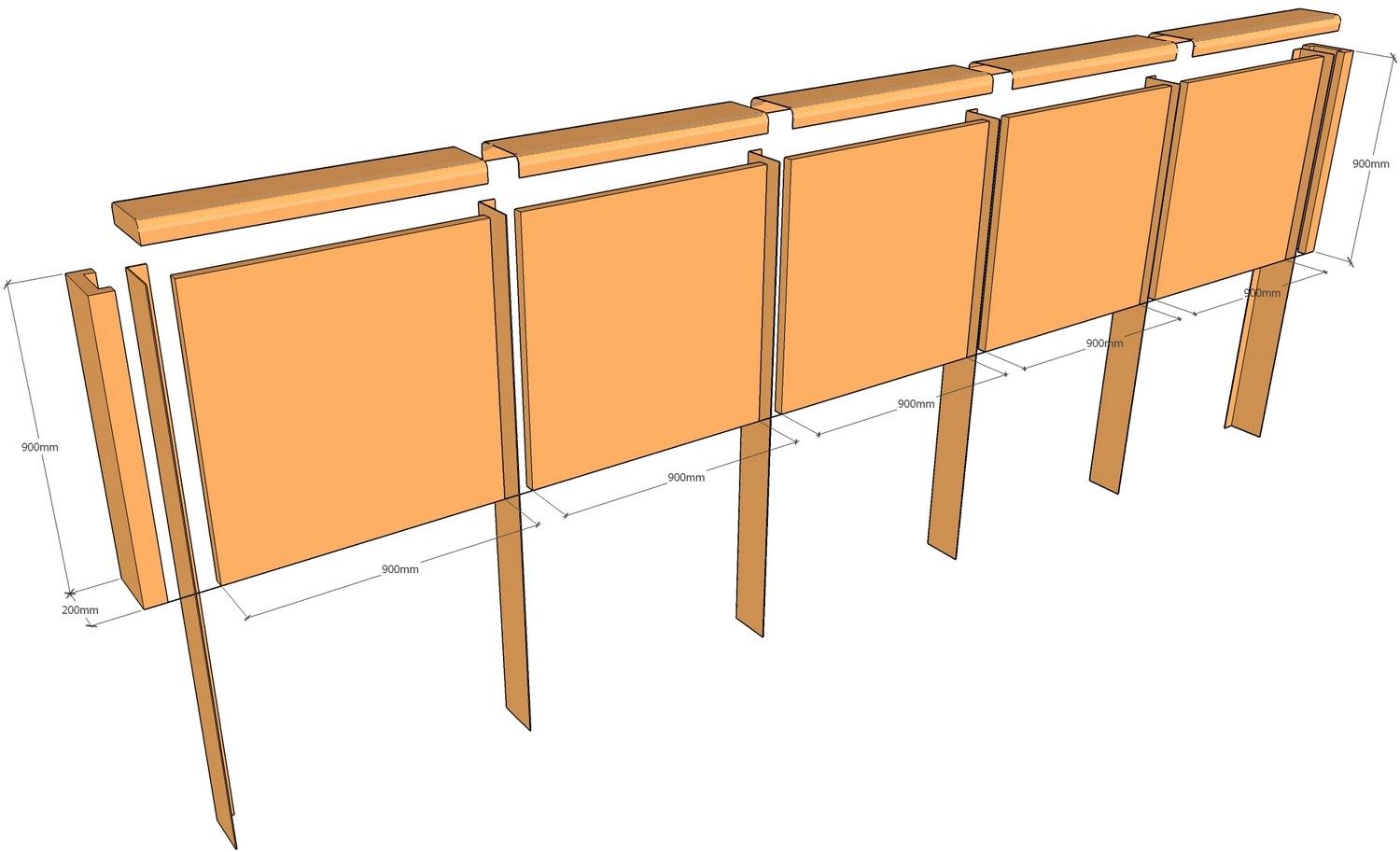

corten retaining wall layout 4.63m long x 900mm tall with top capping

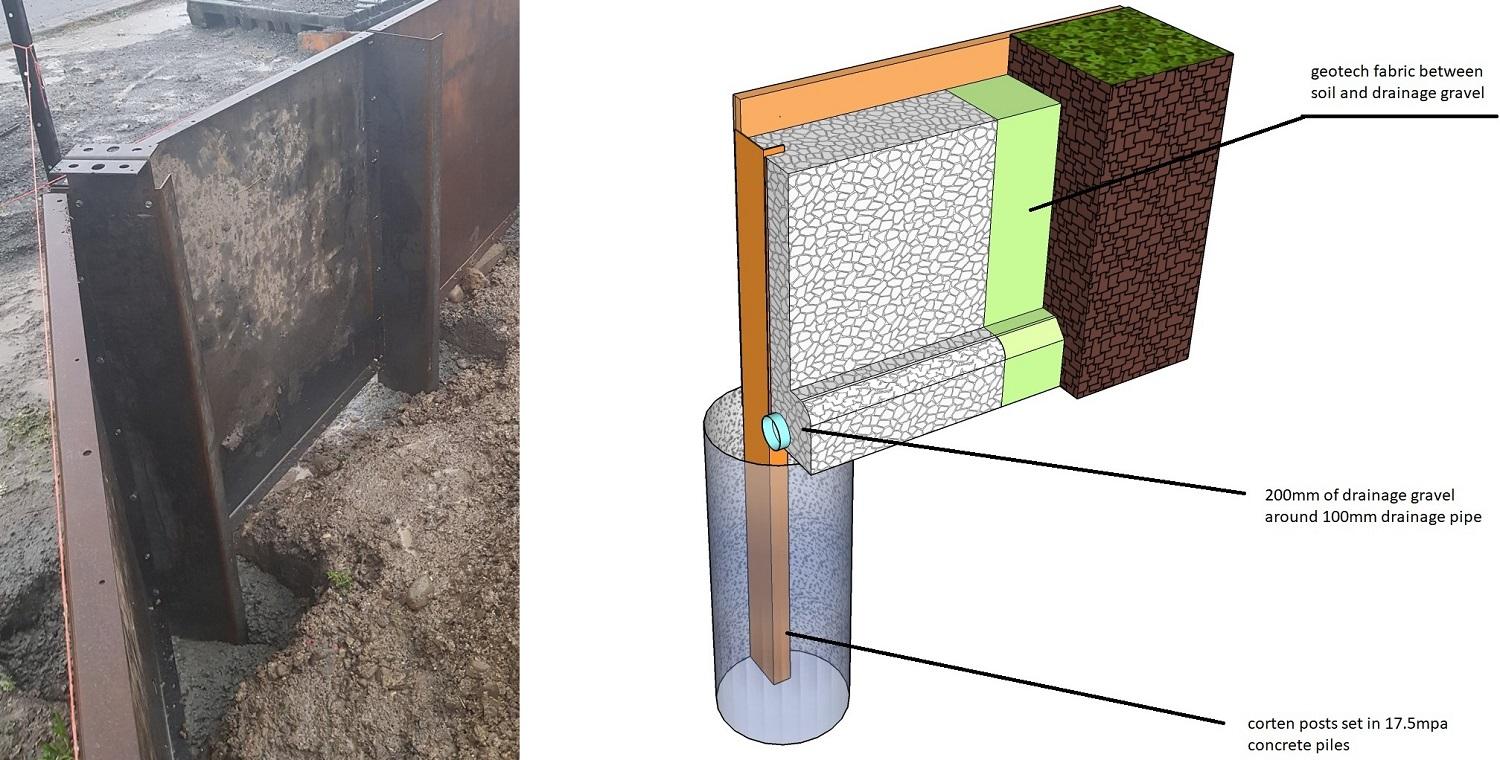

corten retaining wall drainage requirements

When land behind retaining wall is flat

Minimum pile depth = wall height,

In softer soils or when the retaining surcharges

1/ increase pile hole depth and diameter

2/ increase number of support posts

The actual retaining wall support post detail, will depend on the site geology, height of wall, site profile, and surcharges

Please email us with any questions on retaining wall stability.

Need a layout drawing for a different sized retaining wall?

Email us the size and we will get back to you with a suggested layout

long low corten retaining wall

Corten retaining wall 4.63m long x 900mm tall, with top capping

Full kitset price

Filters Sort results
Reset Apply
Complete kitset
$2,760.24
Max:
Min: 1
Step: 1

Corten retaining wall 4.63m long x 900mm tall, with top capping

Parts list

Filters Sort results
Reset Apply
TITLE
DESCRIPTION
PRICE
QTY
3mm thick
$218.90
Max:
Min: 1
Step: 1
2mm thick
$114.58
Max:
Min: 1
Step: 1
160 x 53 x 3mm
$108.22
Max:
Min: 1
Step: 1
3mm thick
$87.62
Max:
Min: 1
Step: 1
$34.27
Max:
Min: 1
Step: 1

Need a layout drawing for a different sized retaining wall?

Email us the size and we will get back to you with a suggested layout

It is recommended to seal the internal steel that will be in contact with the soil, with a bitumen damp proof membrane such as Sika Blackseal Plus or equivalent. This will increase the lifespan of the planter.

More info on corten lifespan here

corten retaining wall with capping wanaka
corten panels 1200mm x 750mm
corten terraced retaining walls

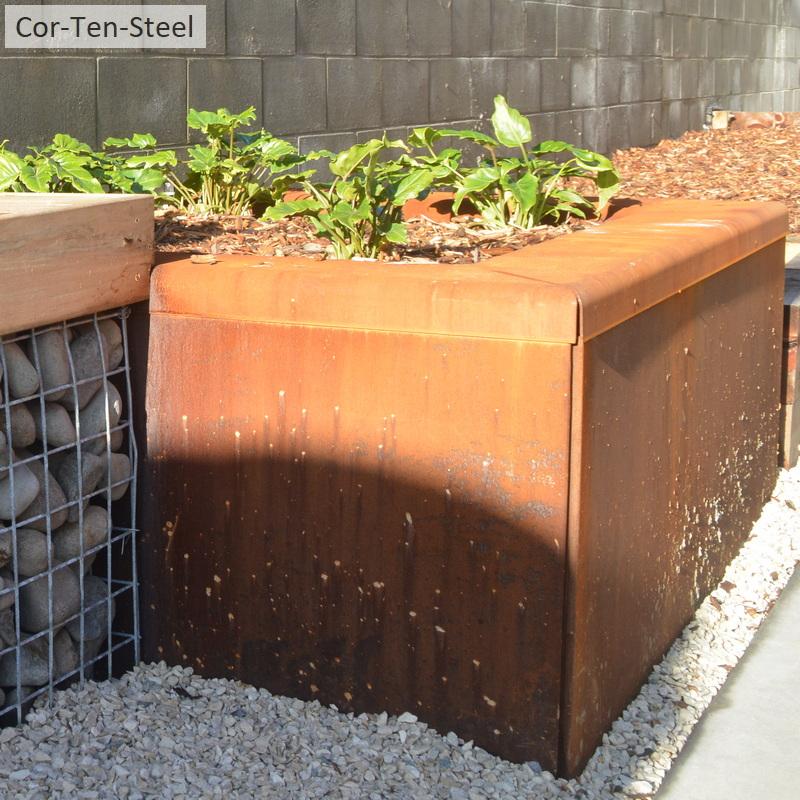

corten planter with rolled edge capping

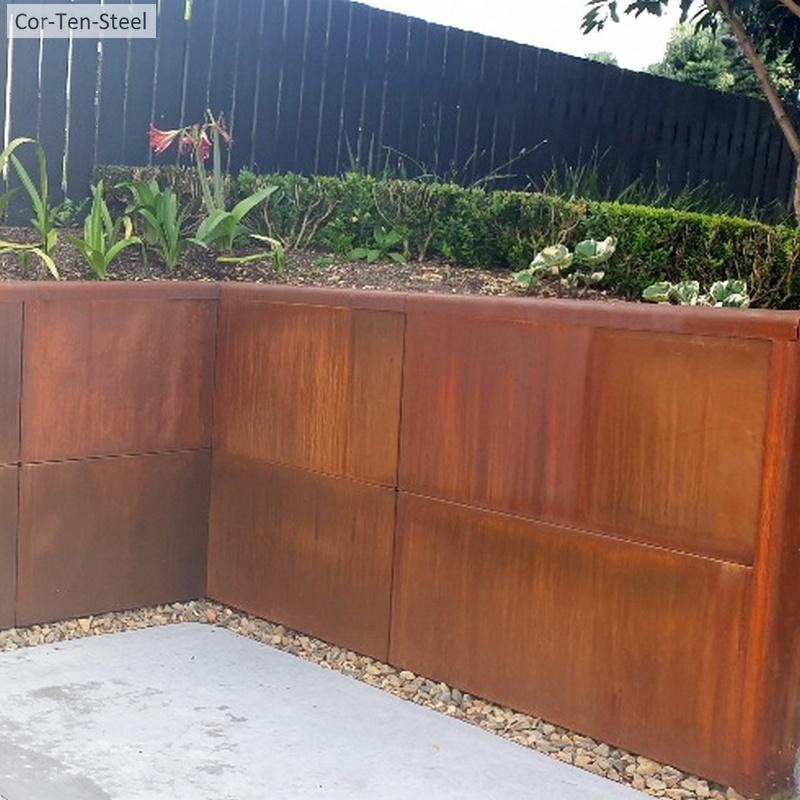

corten retaining wall-1200mm tall
