Corten Exterior Rain Screen Corners

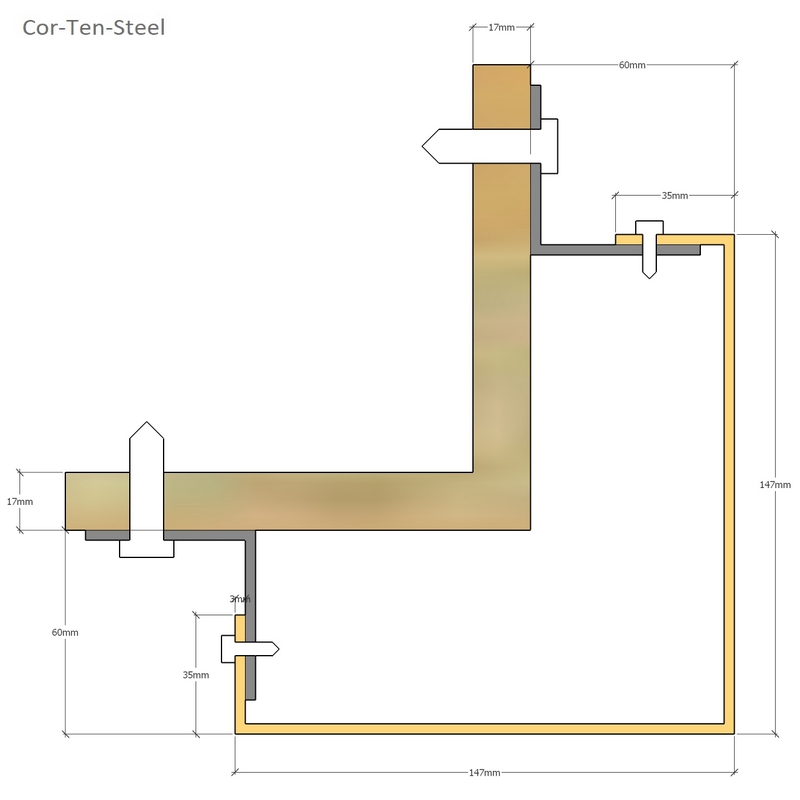

External corner detail plan view
Stainless steel brackets fixed to 17mm H3.2 treated plywood with 10mm stainless steel coach screws
Corten panels fixed to stainless steel brackets with 5.5mm stainless steel TEK screws

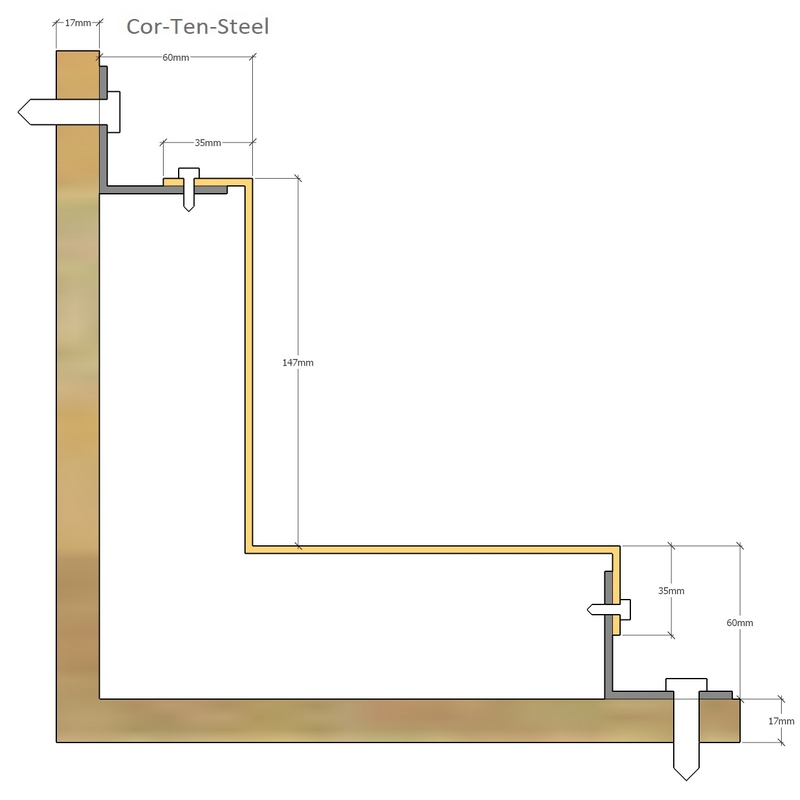

Internal corner detail plan view
Stainless steel brackets fixed to 17mm H3.2 treated plywood with 10mm stainless steel coach screws
Corten panels fixed to stainless steel brackets with 5.5mm stainless steel TEK screws

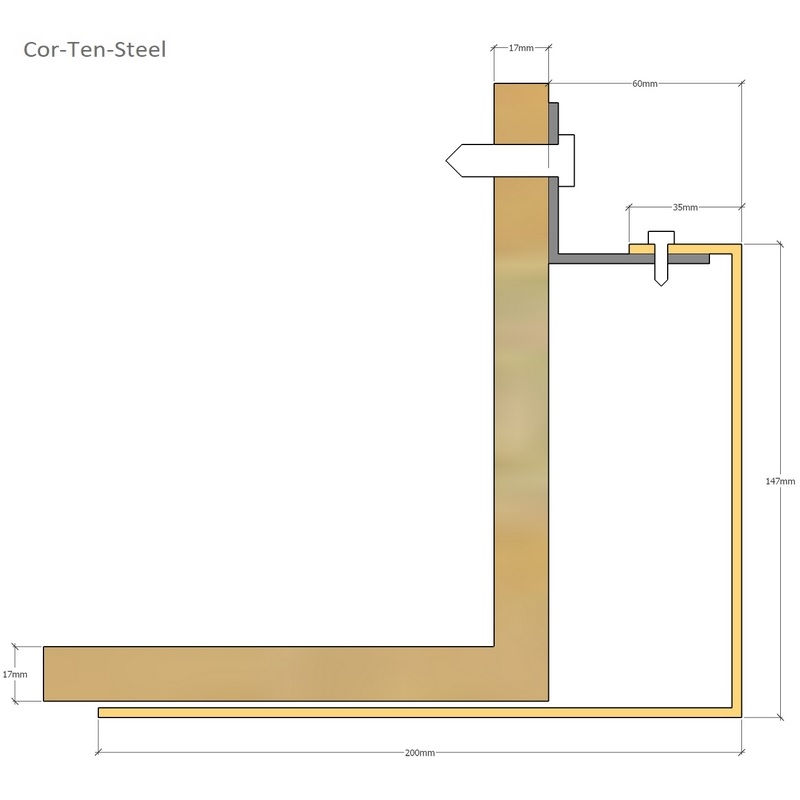

Corten end corner detail plan view
Stainless steel brackets fixed to 17mm H3.2 treated plywood with 10mm stainless steel coach screws
Corten panels fixed to stainless steel brackets with 5.5mm stainless steel TEK screws
