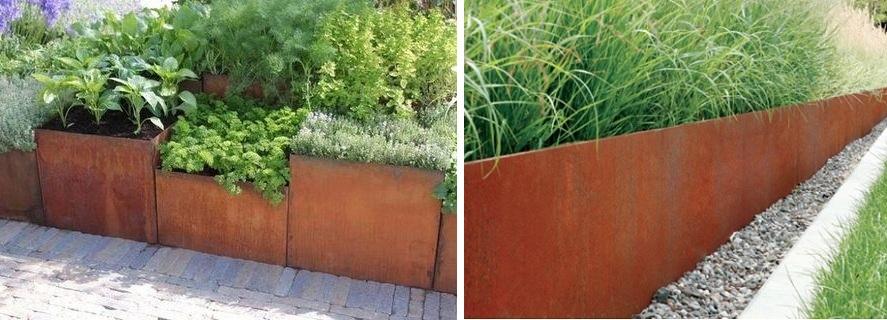

CORTEN GARDEN WALL 900MM TALL ASSEMBLY

Corten Retaining 900mm Instructions

900MM TALL CORTEN PANELS ARE SCREWED TOGETHER USING SS TEK SCREWS

Support posts are installed between straight panels for stability

900mm tall corten wall parts prices

Corten Posts

Set Corten angle posts in concrete

Corten Panels

Corten wall ready to TEK screw next panel

Corten Panels

All corten is supplied as unweathered blue steel, and oxidises over time, with exposure to the elements.

Corten Panels assembled with SS TEK screws

3mm Corten Angle Post TEK screwed to panels

Pre drilled pilot holes

All corten panels, posts, and joining pieces have pre drilled pilot holes

Unweathered blue steel

All corten is supplied as unweathered blue steel, and oxidises over time, with exposure to the elements.

Posts Placement

Posts are placed between straight panel sections

Installation guides

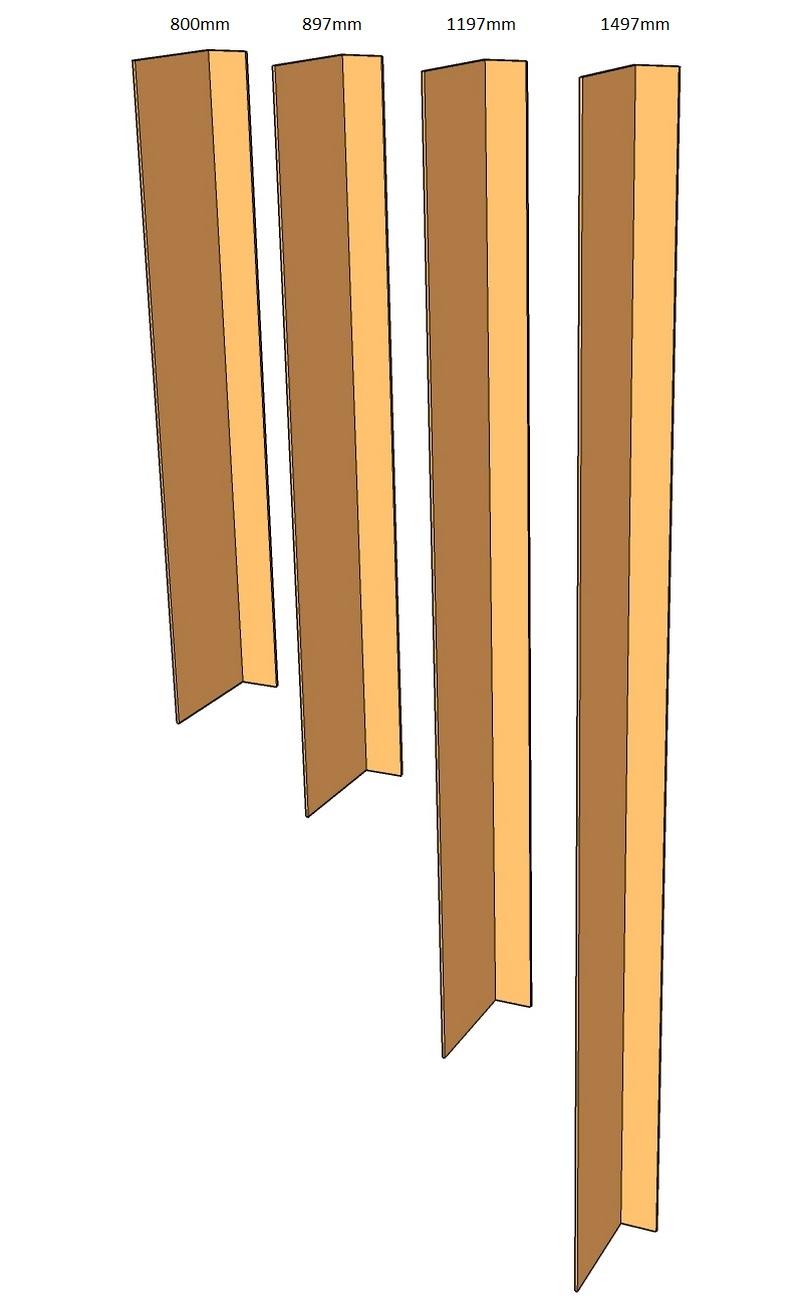

Angle post lengths

160 x 53 x 3mm posts are placed between straight panel sections

800mm 897mm 1197mm 1497mm

Post embedment is half post length Select post length based on soil type and loads on wall, Soft soils with full height retaining, should use the longest post option, which provides the most stability If the ground behind the wall is supporting a driveway or other surcharge loads, the panel lengths should be shortened and the post lengths increased Drainage must be installed behind all retaining walls
